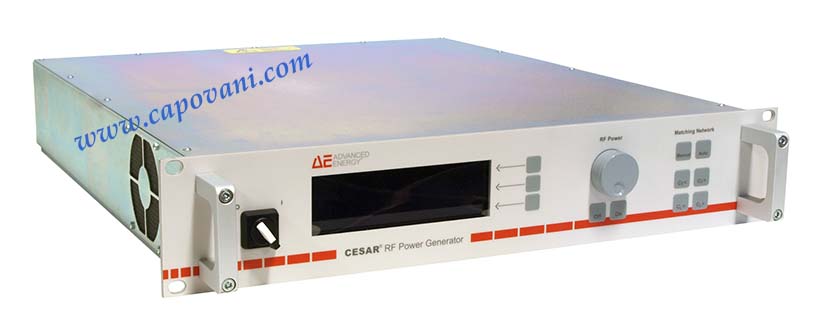

Item ID: 151281 14 Offered at $ 3,750.00 (each) ADVANCED ENERGY RF GENERATOR POWER SUPPLY 600 WATT, 13.56 MHZ Radio Frequency Generator ... other images Location: Scotia, New York Unit Price $ 3,750.00 (each) Number of Units 14 Manufacturer Advanced Energy Model Cesar 136 Description Radio Frequency Generator Rated Power Output 600 Watts Minimum 6.00 Maximum 600.00 Frequency 13.56 Scale MHz Input/Output Impedance 50 Ohms Reflected Power Limit 200.00 W Output Connector Type N Panel Meters Digital External Cooling Forced Air Cooled Other Information P/N 61300049Profibus communication interface card (can be replaced with RS232 AE bus card, 115200 baud rate only, request when ordering)25 Pin User InterfaceCEX "IN" and "OUT" BNC connectorsSoftware revision v 1.20 B1 Power Requirements 230 V 4.6 A 50/60 Hz 1 Phase CE Marked YES Condition New-Never Used Exterior Dimensions Width 19.000 in (48.3 cm) Depth 22.000 in (55.9 cm) Height 3.500 in (8.9 cm) Weight 41 lb (19 kg) OFFERED BY: (click name below to visit its website directly)Capovani Brothers Inc. Scotia , New York 1.518.346.8347 Shipping & Handling:Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions. Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.Please feel free to call us with any questions. (Phone: 518.346.8347, Fax: 518.381.9578). Payment:Minimum order of $50 required. We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms. All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms. All other sales, including foreign sales, are prepayment only. MasterCard, VISA, Discover and AMEX are accepted at sellers discretion. Domestic Terms and Conditions International Terms and Conditions Deal directly with Owner: Capovani Brothers Inc. of Scotia, New York ACCEPT Offered TermsMake COUNTER-OFFERSend an INQUIRY
Radio Frequency Generator

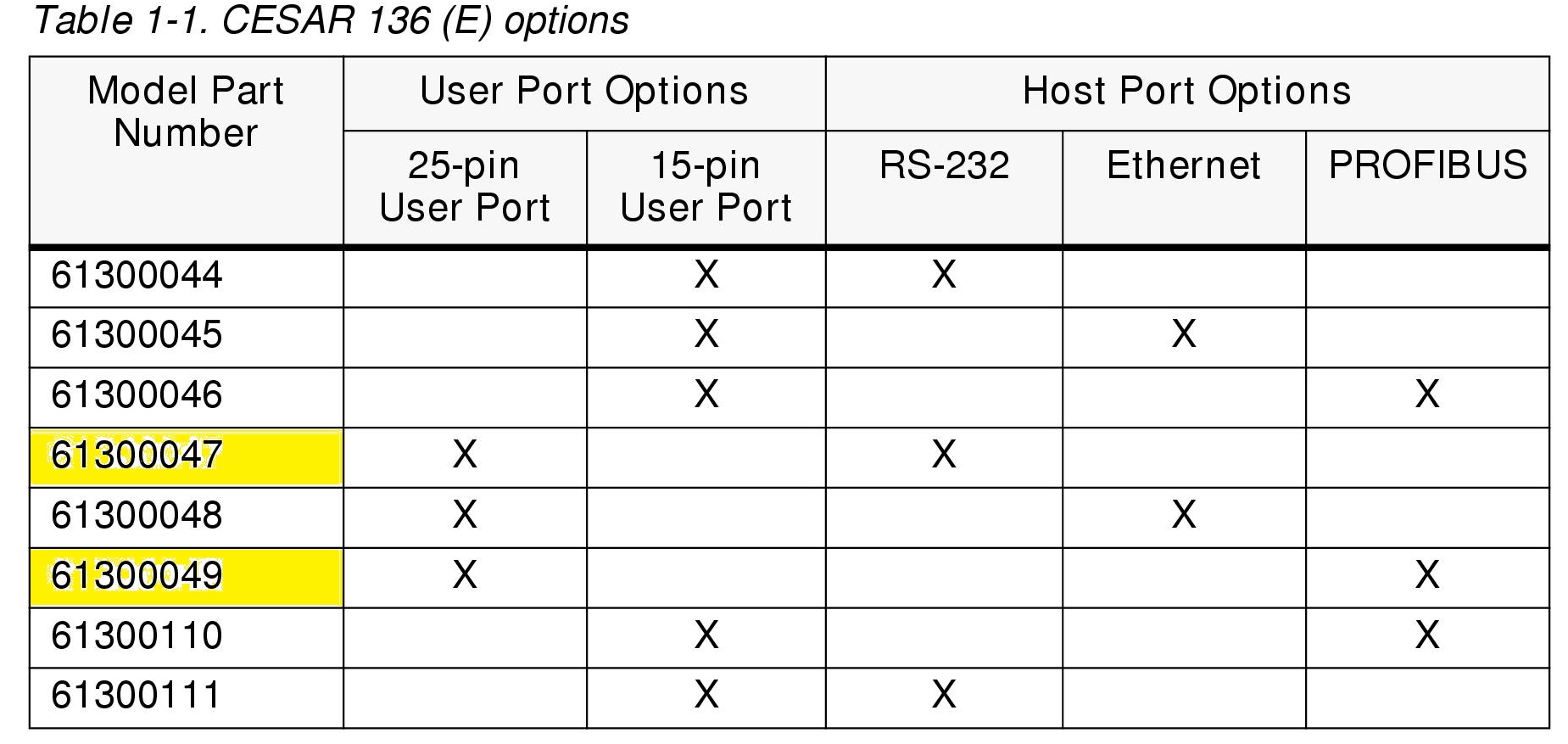

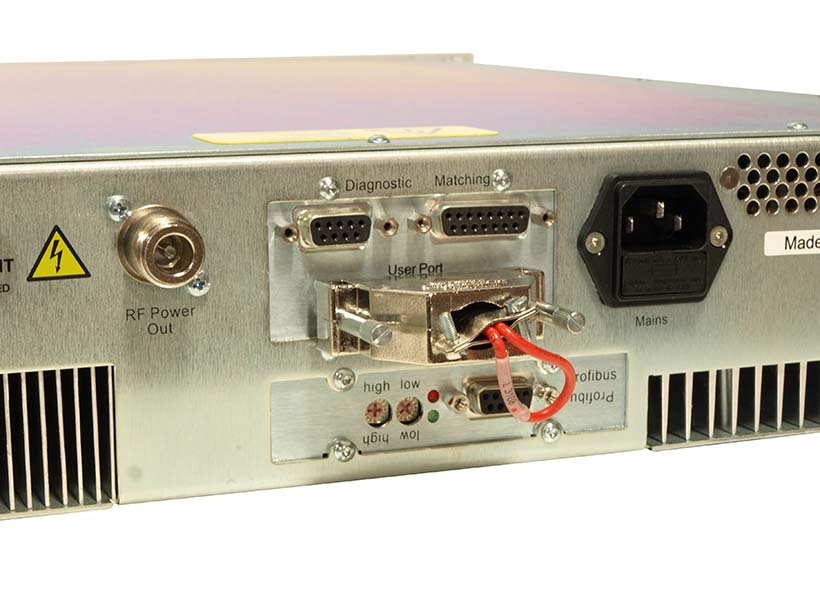

P/N 61300049Profibus communication interface card (can be replaced with RS232 AE bus card, 115200 baud rate only, request when ordering)25 Pin User InterfaceCEX "IN" and "OUT" BNC connectorsSoftware revision v 1.20 B1
