FULL DESCRIPTION of Item 73683

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 73683

Offered 1 Offered at $ 850.00


SORENSEN DC POWER SUPPLY 20V, 50A

DC Power Supply

SORENSEN DC POWER SUPPLY 20V, 50A

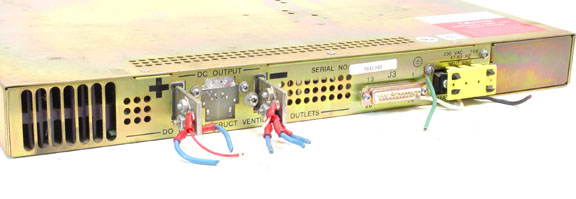

  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price $ 850.00
Number of Units 1
Manufacturer Sorensen
Model DCS 20-50
Maximum Output Voltage 20.00 Volts
Maximum Output Current 50.00 Amps
Maximum Output Power 1.00 kW
Regulation Modes Constant Current     Constant Voltage
Ripple 25 mA
Panel Meters Digital
Interface I/O Port
External Cooling Air Cooled
Other Information

Can be converted to 115VAC input internally, request when ordering.

Operation mode switch SW1 must be configured internally for you application, request configuration when ordering, see the manual below DCS 1KW 1063986 Rev M.pdf

Unit will be warranty sealed and cannot be opened to change configuration without losing 90 days warranty.

Extended Description  Details at DCS 1KW 1063986 Rev M.pdf
Power Requirements 115/ 230 V     10.0 A     20.0 A(2)     47-63 Hz     1 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 19.000  in  (48.3 cm)
  Height 2.000  in  (5.1 cm)
Weight 20  lb  (9 kg)
