FULL DESCRIPTION of Item 197047

in Rotary Vane Pumps
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 197047

Offered2 Offered at Best Price

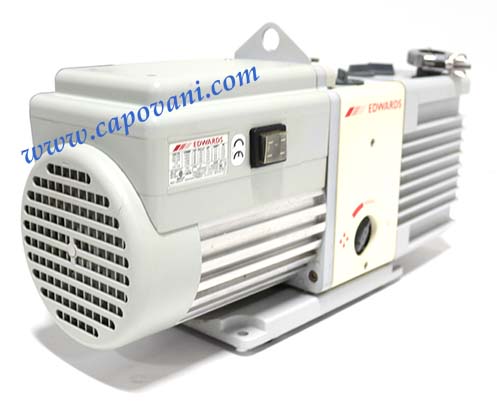

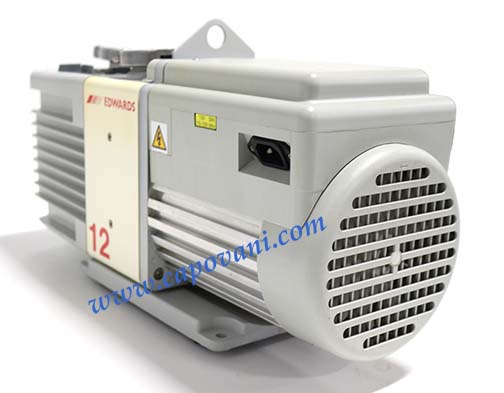

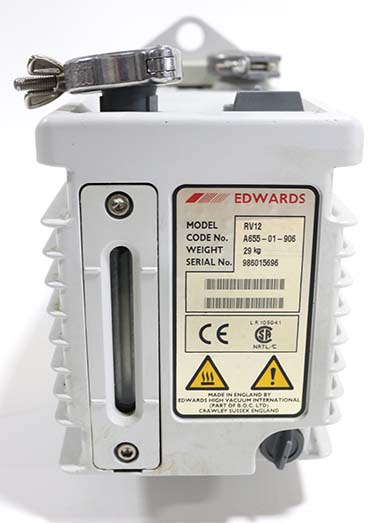

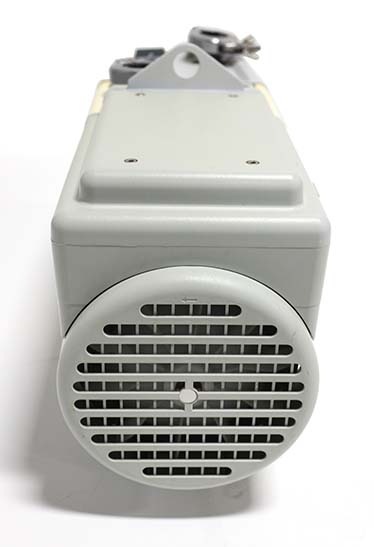

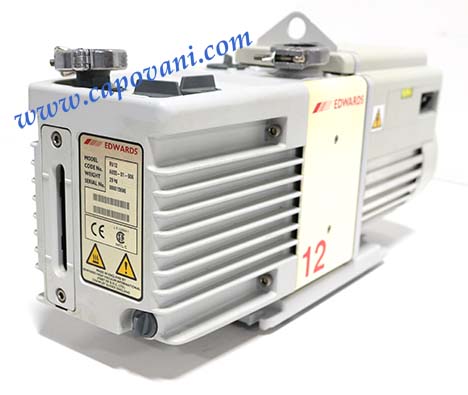

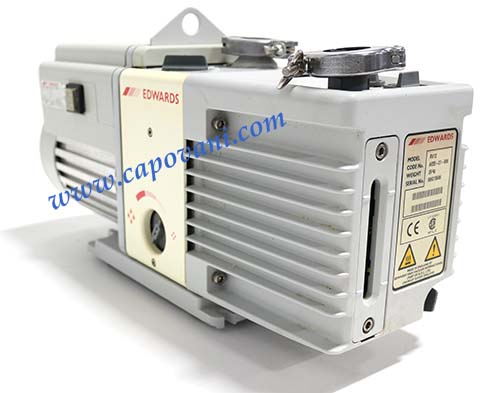

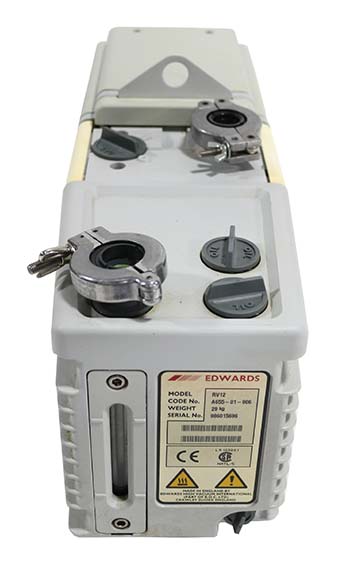

EDWARDS ROTARY VANE MECHANICAL VACUUM PUMP 10 CFM

Two Stage Mechanical Vacuum Pump



Pumping speed and ultimate pressure are based on 60 Hz operation.

Edwards RV12



EDWARDS ROTARY VANE MECHANICAL VACUUM PUMP 10 CFM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 2
Manufacturer Edwards
Model RV 12
Pumping Speed 8.4  CFM  (237.4 l/m)
Ultimate Pressure  1.50E-3(En)  torr  (2.00E-3 mbar)
Inlet Flange KF     25.0  mm  (0.984 in)
Exhaust Flange KF     25.0  mm  (0.984 in)
Duty--Service Normal
Two-Stage YES
Gas Ballast Yes
Direct Drive Yes
Motor Horsepower 3/4  HP
Oil Type Hydrocarbon
Other Information
Pump is configured for 120VAC, request 240VAC input voltage when ordering.
Extended Description  Details at rv 3,5,8,12 pumps A652_01_880.pdf
Power Requirements 120/240 V     6.6 A     3.4 A(2)     50/60 Hz     1 Phase
CE Marked YES
Exterior Dimensions
  Width 6.220  in  (15.8 cm)
  Depth 19.250  in  (48.9 cm)
  Height 10.280  in  (26.1 cm)
Weight 58  lb  (26 kg)
