FULL DESCRIPTION of Item 34864

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 34864

Offered 19 Offered at $ 1,250.00 (each)

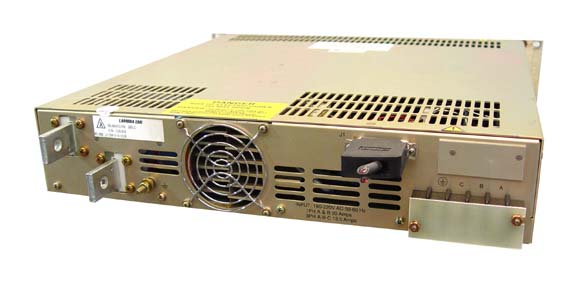

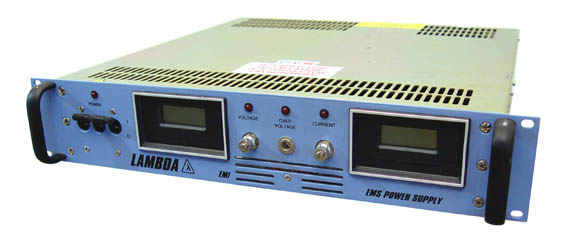

ELECTRONIC MEASUREMENTS INC. DC POWER SUPPLY

Direct Current Power Supply

ELECTRONIC MEASUREMENTS INC. DC POWER SUPPLY
  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price $ 1,250.00 (each)
Number of Units 19
Manufacturer Electronic Measuremt
Model EMS 13-200-2-D-1520
Maximum Output Voltage 13.00 Volts
Maximum Output Current 200.00 Amps
Maximum Output Power 2.60 kW
Regulation Modes Constant Current     Constant Voltage
Ripple 75
Panel Meters Digital
Control Type Programmable
External Cooling Forced Air Cooled
Other Information

P/N 004731999
Operation on the single phase power is not recommended, if you do need to use it, contact our tech support, please.

Extended Description  Details at 83473000_EMS_STD Rev J.pdf
Power Requirements 190-250 V     16.5 A     50/60 Hz     3 Phase
Year of Manufacture 2001
Condition Excellent
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 21.000  in  (53.3 cm)
  Height 3.500  in  (8.9 cm)
Weight 34  lb  (15 kg)

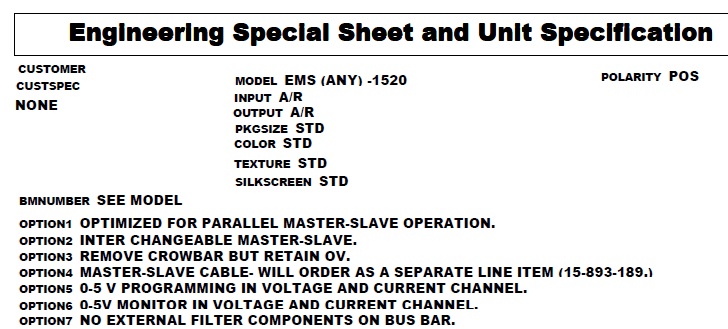

click to view document at right in new window-1520 Option
