Item ID: 207153

**1 Offered at Best Price**

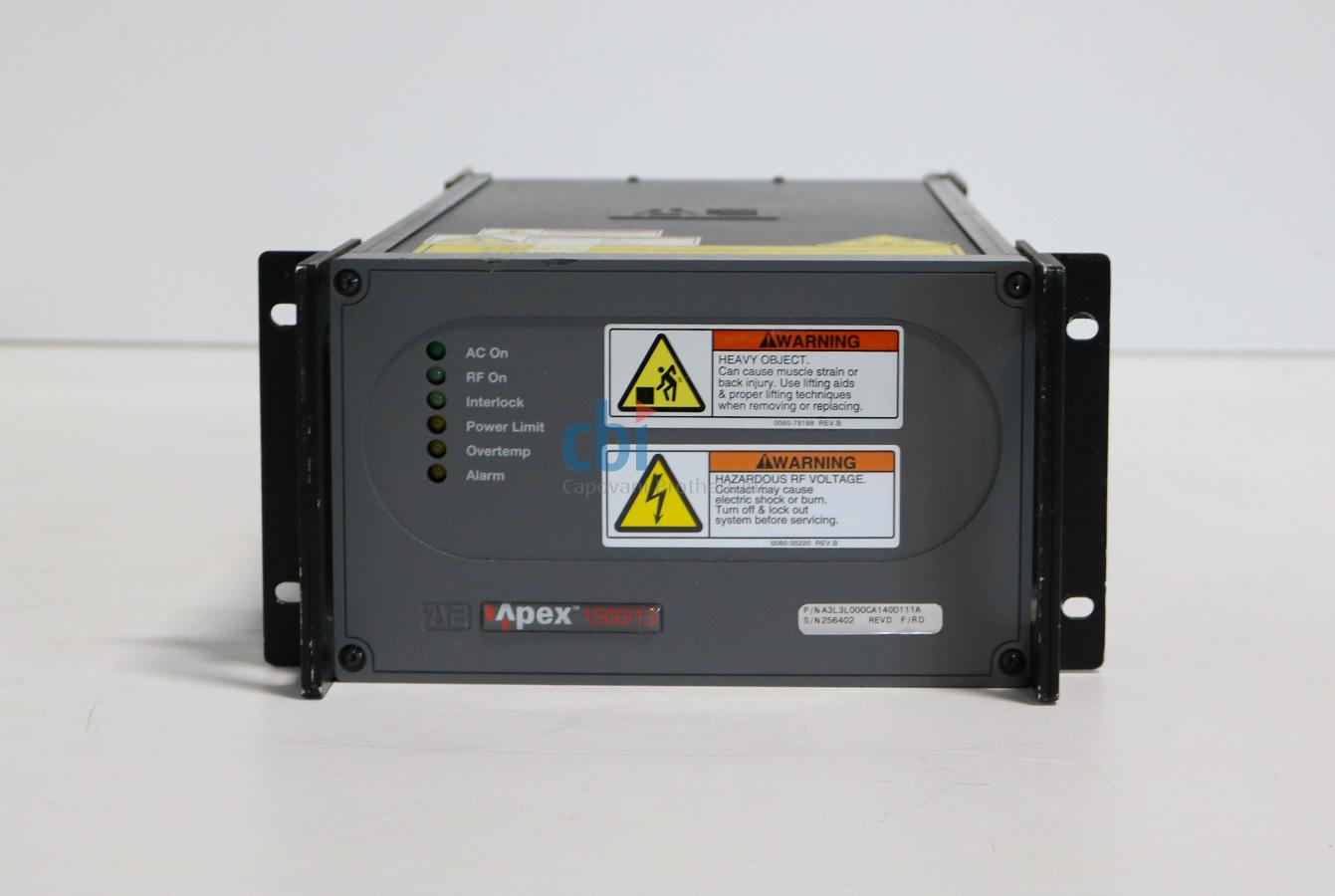

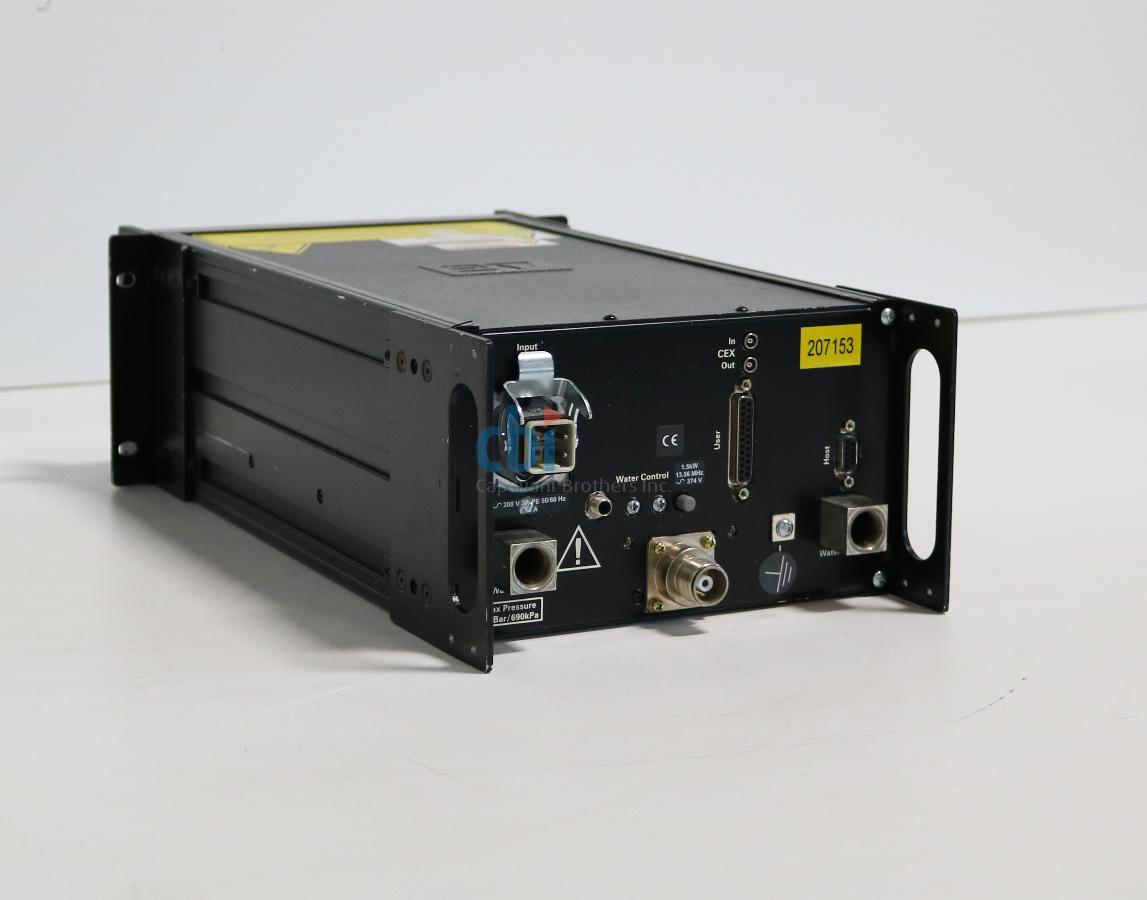

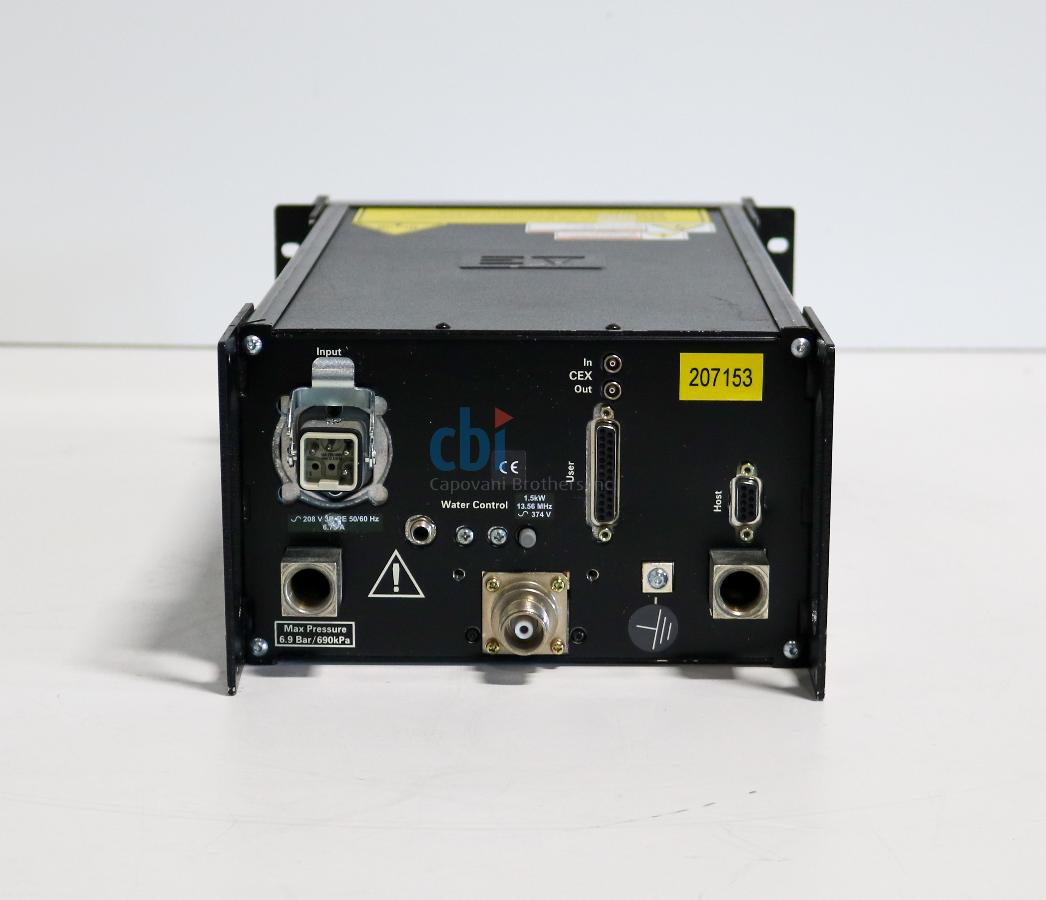

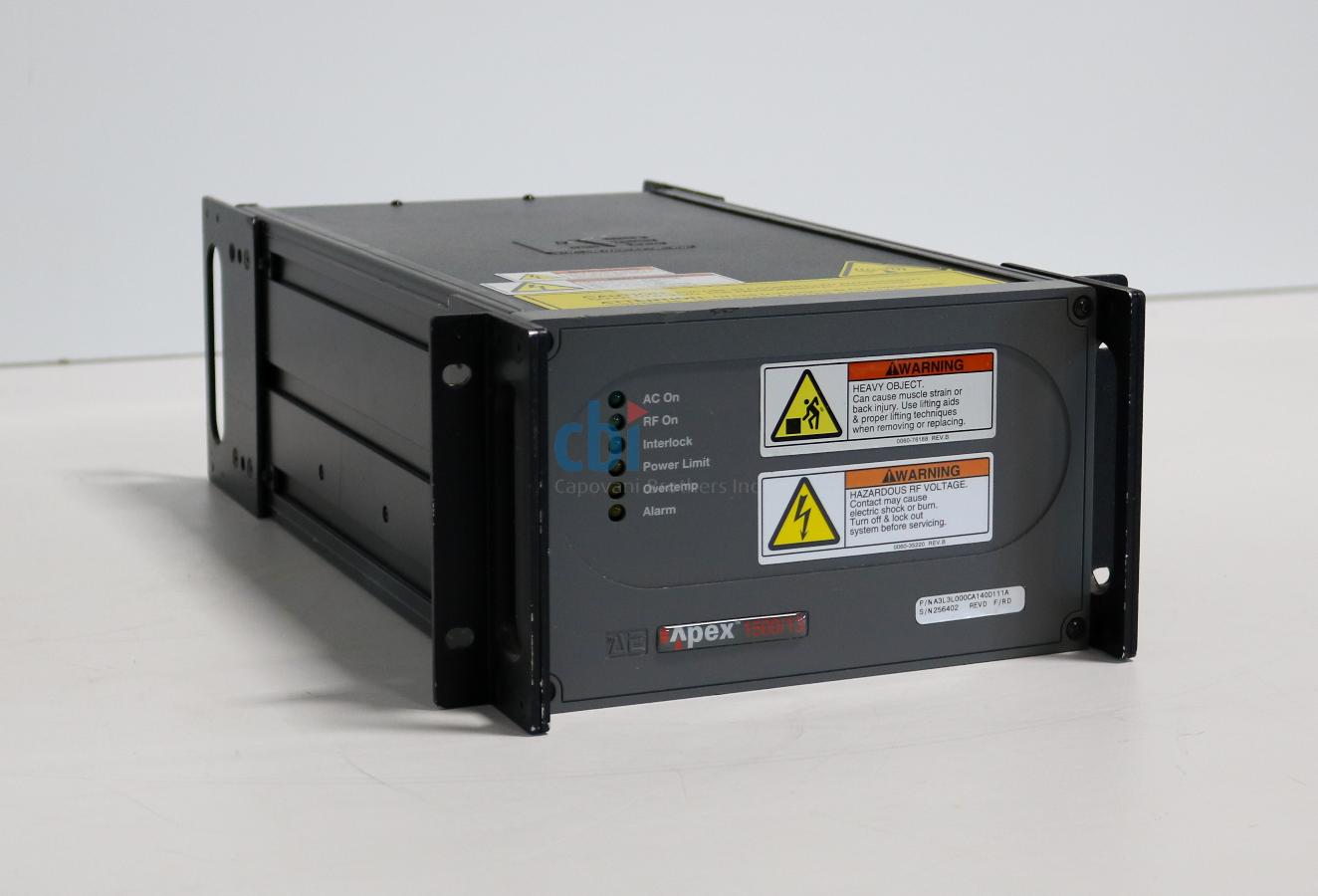

ADVANCED ENERGY RF GENERATOR POWER SUPPLY 1500 W 13.56 HZ

Radio Frequency Generator

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Advanced Energy
Model	Apex 1500/13
Description	Radio Frequency Generator
Rated Power Output	1500 Watts
Frequency	13.56
Scale	MHz
Interface	I/O Port
Interface 2	RS 232
External Cooling	Water Cooled
Accessories	Power cord with Hubbell 30A 250V 3 phase 4 wire plug included

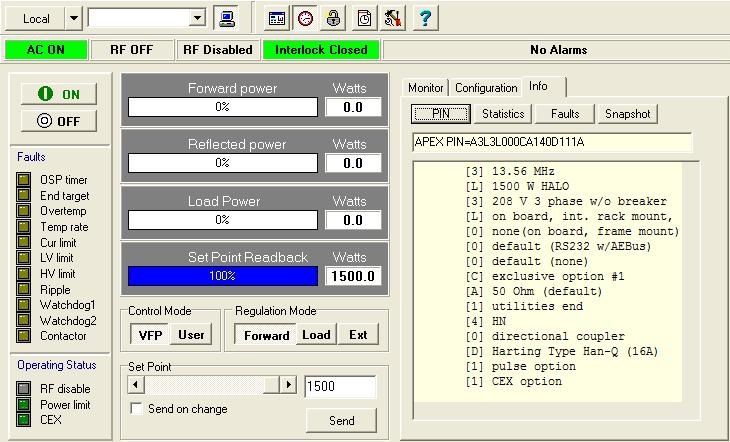

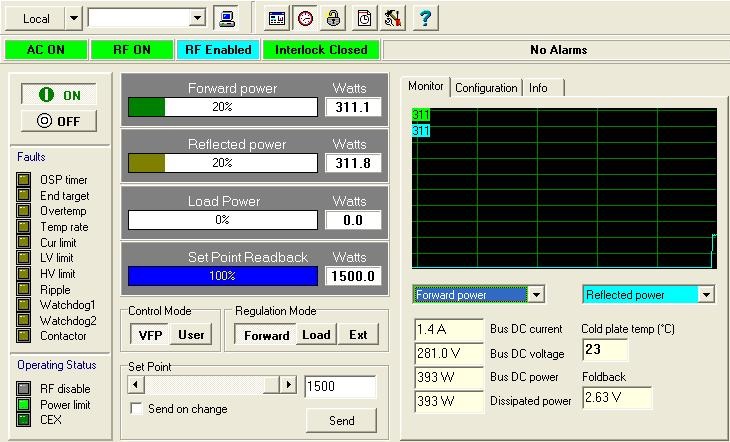

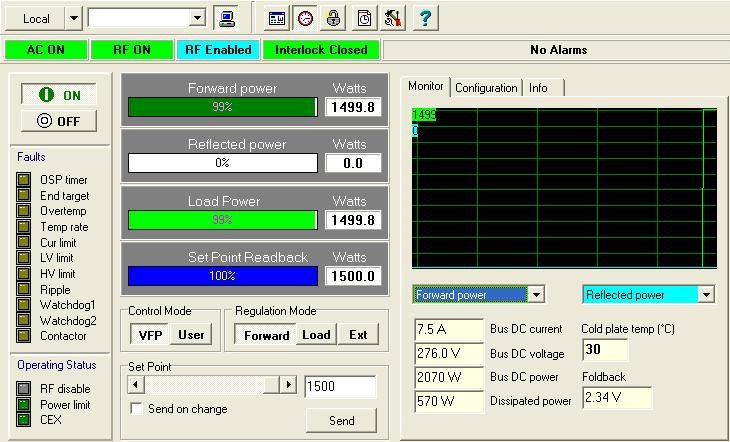

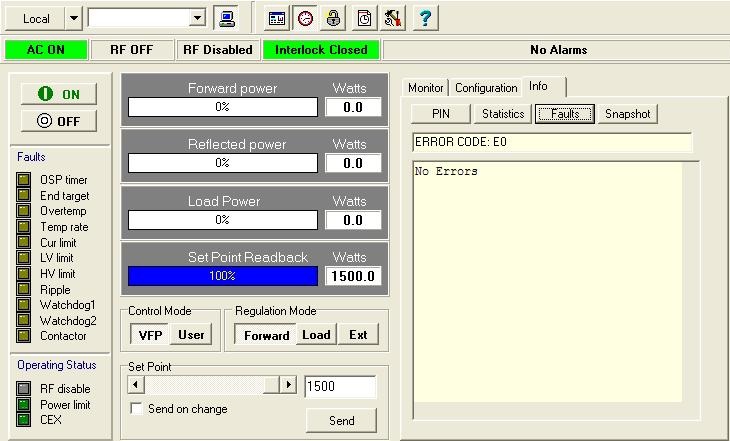

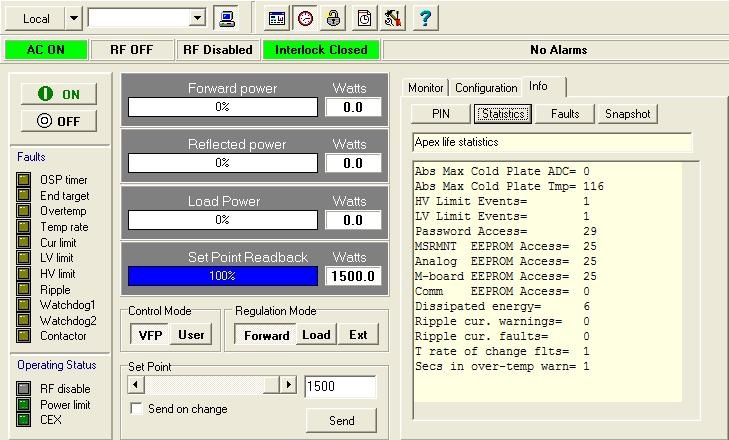

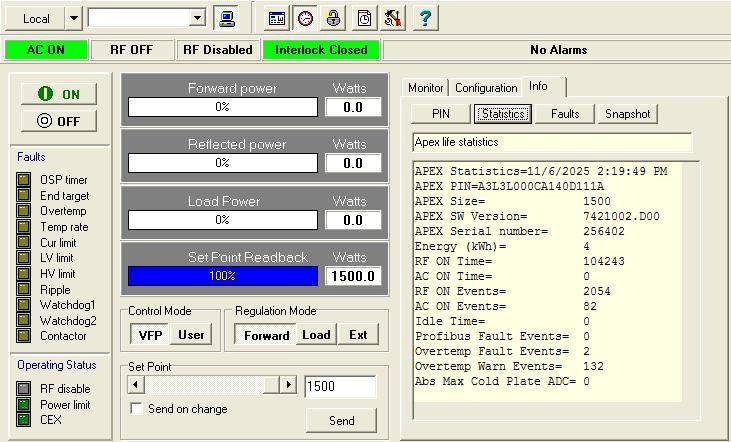

Other Information	Tested, see last 6 pictures in the "... other images" link above Time in statistic screen is in seconds. On power-up 25 pin user port is always active, use AE BUS command 14 to change to host mode. The control mode setting is stored in volatile memory, so it will need to be set each time unit is powered up. Windows 2000 Virtual Front Panel software available. Full P/N: A3L3L000CA140D111A Output frequency: [3] 13.56 MHz Power output: [L] 1500 W HALO Input voltage: [3] 208 V 3 phase w/o breaker Package: [L] on board, int. rack mount, 4 handles (LED w/4H) Panel: [0] none(on board, frame mount) Serial I/O: [0] default (RS232 w/AEBus) Serial port 2: [0] default (none) Analog I/O: [C] exclusive option #1 Output Impedance: [A] 50 Ohm (default) On-board RF con: [1] utilities end Output Connector: [4] HN RF Measurement: [0] directional coupler AC Power Input: [D] Harting Type Han-Q (16A) Pulsing: [1] pulse option CEX: [1] CEX option H2O Fittings: [1] 3/8 NTP female Custom Config: [A] standard configuration Manufacturer link https://www.advancedenergy.com/en-us/products/plasma-power-products/rf-plasma-generators/apex/
Power Requirements	208 V 6.8 A 50/60 Hz 3 Phase
CE Marked	YES
Condition	Excellent
Exterior Dimensions
Width	10.500 in (26.7 cm)
Depth	17.500 in (44.5 cm)
Height	5.250 in (13.3 cm)
Weight	37 lb (17 kg)
