FULL DESCRIPTION of Item 185535

in DC Power Supplies 		Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 185535

Offered 5 Offered at $ 800.00 (each)

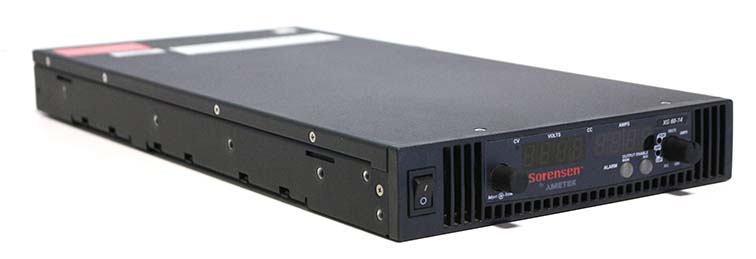

SORENSEN AMETEK PROGRAMMABLE DC POWER SUPPLY 60 V, 14 A

Programmable DC Power Supply


Sorensen is an Ametek Programmable Power brand.
 		SORENSEN AMETEK PROGRAMMABLE DC POWER SUPPLY 60 V, 14 A
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 800.00 (each)
Number of Units 5
Manufacturer Sorensen
Model XG 60-14
Maximum Output Voltage 60.00 Volts
Maximum Output Current 14.00 Amps
Maximum Output Power 0.85 kW
Regulation Modes Constant Current     Constant Voltage
Ripple 50mV
Panel Meters Digital
Control Type Programmable
External Cooling Forced Air Cooled

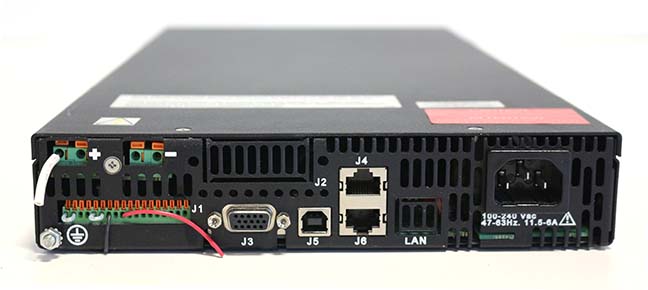

Other Information Input interfaces (see details in the manual page 1-10):
  • RS232
  • RS485
  • USB
  • Analog
  • Analog isolated (MIA option installed)

    Click HERE for the manual and HERE for the Datasheet

    Firmware MSTR V2.25
Power Requirements 100-240 V     11.5 A     6.0 A(2)     47-63 Hz     1 Phase
CE Marked YES
Exterior Dimensions
  Width 8.400  in  (21.3 cm)
  Depth 19.000  in  (48.3 cm)
  Height 1.700  in  (4.3 cm)
Weight 11  lb  (5 kg)
