FULL DESCRIPTION of Item 3703

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 3703

Offered 7 Offered at $ 2,650.00 (each)

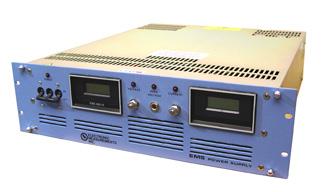

ELECTRONIC MEASUREMENT INC. DC POWER SUPPLY

DC Power Supply

ELECTRONIC MEASUREMENT INC. DC POWER SUPPLY

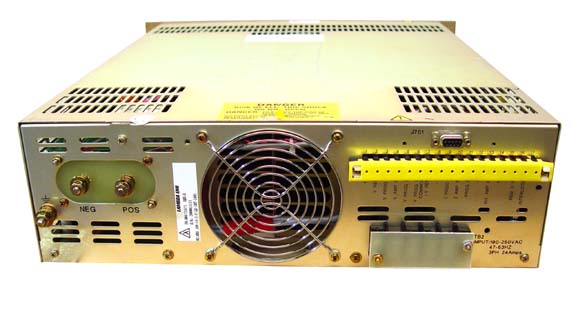

  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price $ 2,650.00 (each)
Number of Units 7
Manufacturer Electronic Measuremt
Model EMS 300-16-2-D LB-10T-1401
Maximum Output Voltage 300.00 Volts
Maximum Output Current 16.00 Amps
Maximum Output Power 4.80 kW
Regulation Modes Constant Current     Constant Voltage
Ripple 150
Panel Meters Digital
Control Type Analog Setpoint
External Cooling Forced Air Cooled
Other Information

Model EMS 300-16-2-D-LB-10T-1401
0-5V voltage and current remote control
0-5V voltage and current monitor scale
Stability 0.05%
Regulation 0.1%
Watts 5000
Programmable

This power supply has option -1401: “Fast discharge option”. Output electrolytic filtering capacitor is replaced with polyester one with much smaller value to achieve fast discharge. As a result, output voltage is less filtered, ripple P-2-P voltage @ full power is 5.7 V. Standard power supply without -1401 option specification: ripple P-2-P voltage 0.15 V.

Extended Description  Details at 83473000_EMS_STD Rev J.pdf
Power Requirements 190-250 V     24.0 A     50/60 Hz     3 Phase
Condition Excellent
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 22.000  in  (55.9 cm)
  Height 5.250  in  (13.3 cm)
Weight 46  lb  (21 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, and Discover Card are accepted.



Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
