Item ID: 261664

**1 Offered at Best Price**

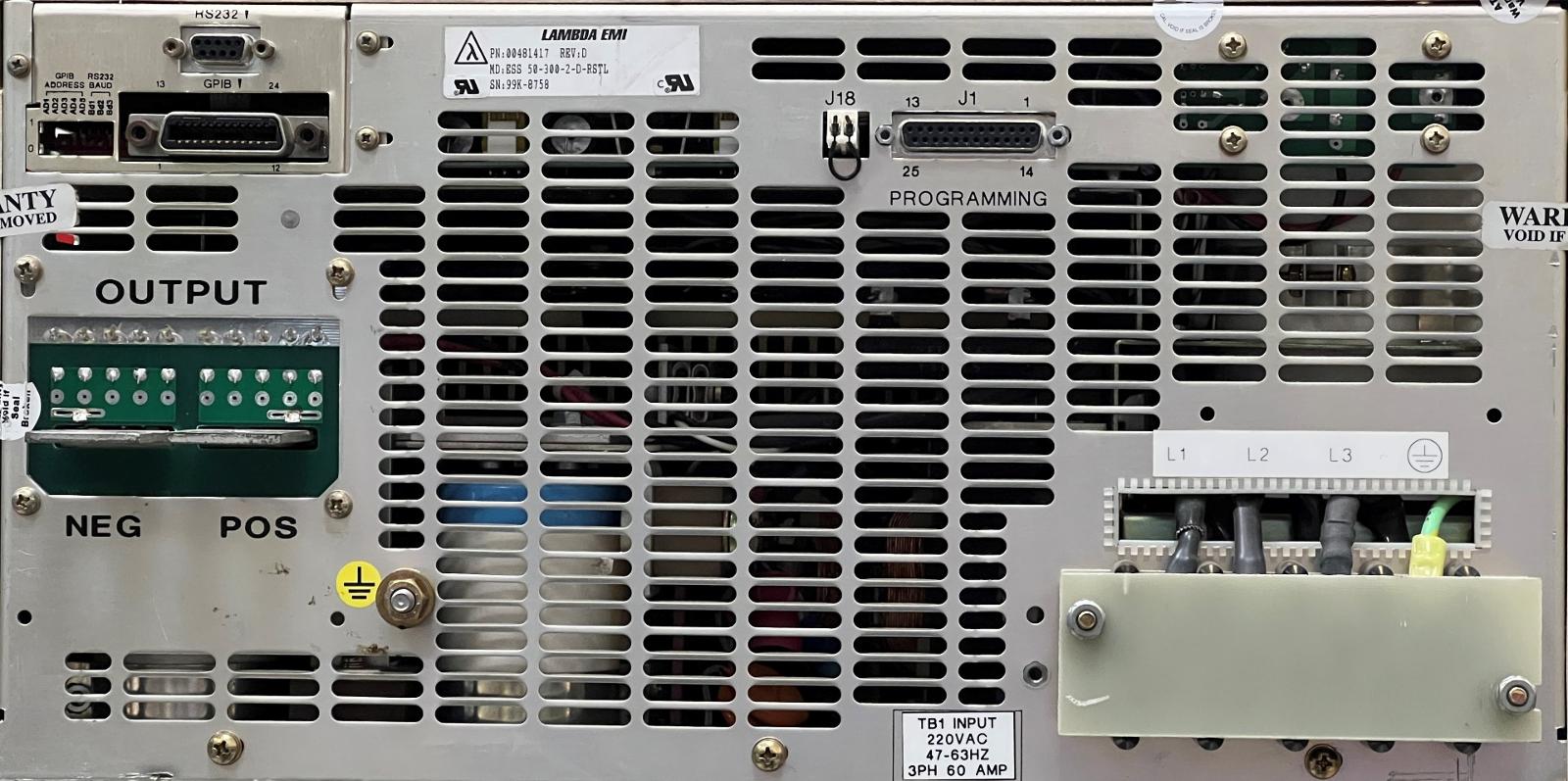

LAMBDA EMI DC POWER SUPPLY 50V, 300A with RSTL IEEE-488.2 (GPIB) /RS232 option

LAMBDA EMI DC POWER SUPPLY 50V, 300A with RSTL IEEE-488.2 (GPIB) /RS232 option

... other image

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	TDK-Lambda
Model	ESS 50-300-2-D-RSTL
Maximum Output Voltage	50.00 Volts
Maximum Output Current	300.00 Amps
Maximum Output Power	15.00 kW
Regulation Modes	Constant Current Constant Voltage
Ripple	75 mV
Panel Meters	Digital
Interface	IEEE 488-GPIB
Interface 2	RS 232
Control Type	Programmable
External Cooling	Forced Air Cooled
Accessories	-RSTL option installed for IEEE-488.2 (GPIB) /RS232 control
Other Information	P/N 00481417 Rev D In the Normal Operation mode, the power supply is controlled by the front panel potentiometers and configured for constant voltage, constant current and local sensing. When shipped, the power supply will be configured for this mode with provided J1 jumper plug. When using RSTL program, voltage and current programming are not applicable, see RSTL jumper plug configuration in the manual. The unit with the "RSTL" option cannot be programmed by remote analog programming connector in the voltage or current mode.
Extended Description	Details at Instruction Manual 83481004rZ.pdf
Power Requirements	190-250 V 60.0 A 47-63 Hz
Exterior Dimensions
Width	19.000 in (48.3 cm)
Depth	25.000 in (63.5 cm)
Height	9.000 in (22.9 cm)
Weight	105 lb (48 kg)

RELATED DOCUMENTS: click links to view
RSTL Instruction Manual
