FULL DESCRIPTION of Item 202874

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 202874

Offered 12 Offered at $ 2,950.00 (each)

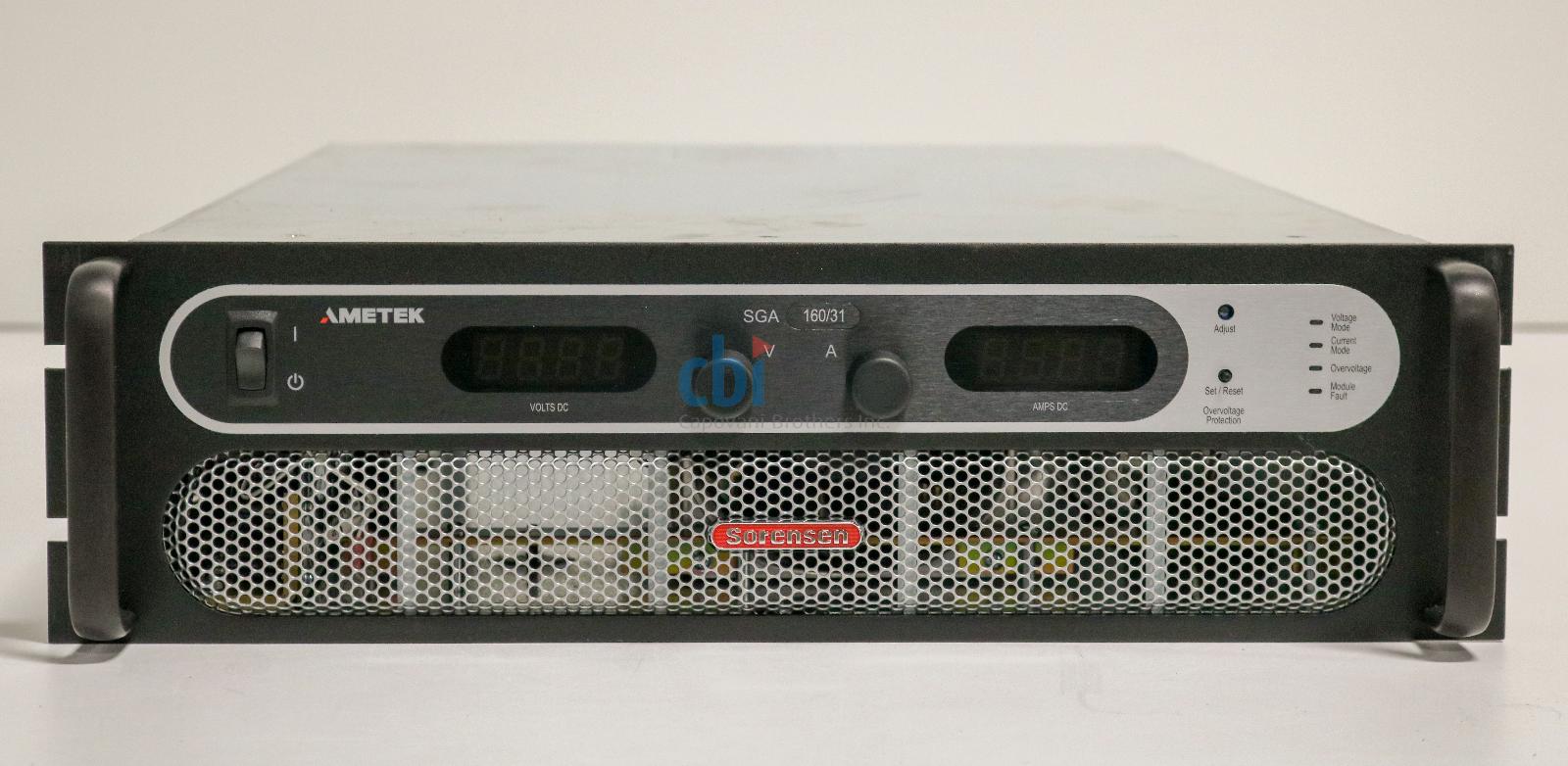

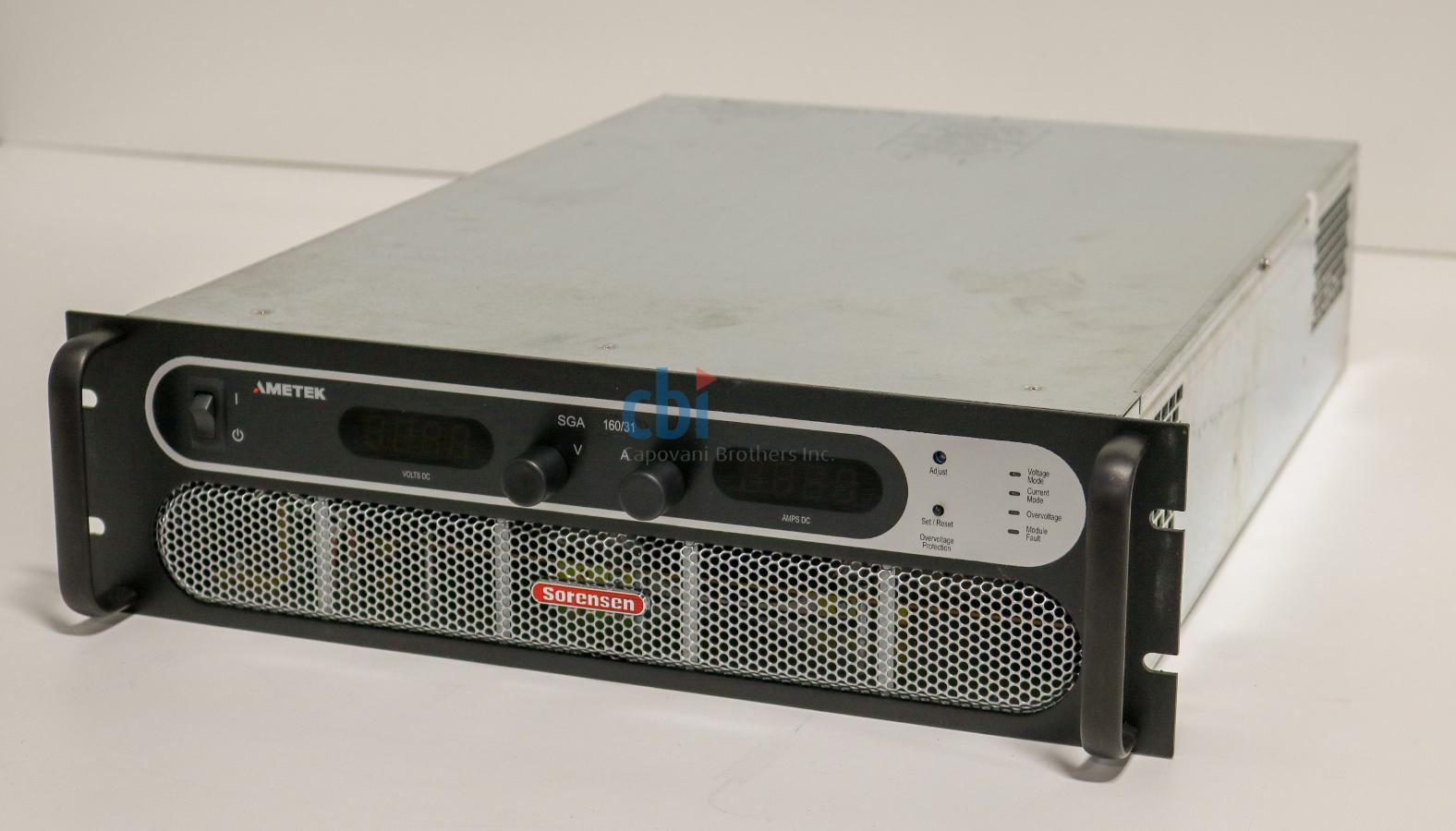

SORENSEN AMETEK DC POWER SUPPLY 160 V, 31 A

New In The Box.  Unused Surplus

The SGA, with its industry leading performance, is available for customers requiring simple front panel analog controls or external control. With the same high performance power electronics as the SGI, the SGA provides essential features like 10- turn potentiometers for setting voltage and current, 3 ½ digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset.

SORENSEN AMETEK DC POWER SUPPLY 160 V, 31 A
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 2,950.00 (each)
Number of Units 12
Manufacturer Sorensen
Model SGA160X31D-0AAAAR
Maximum Output Voltage 160.00 Volts
Maximum Output Current 31.00 Amps
Maximum Output Power 4.80 kW
Regulation Modes Constant Current     Constant Voltage     Constant Power     Constant Resistance
Panel Meters Digital
External Cooling Air Cooled
Other Information

For European 3 phase 380/400VAC input power only, will be damaged by 480VAC

Input:  342-440 V, 14 A/PH, 50/60 Hz, 3 Phase, 5.8 kW

Output: 0-160 V, 0-31 A, 5 kW



Extended Description  Details at Sorensen SGA Series Specifications.pdf
CE Marked YES
Condition New-Never Used
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 26.400  in  (67.1 cm)
  Height 5.250  in  (13.3 cm)
