FULL DESCRIPTION of Item 185618

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 185618

Offered 12 Offered at Best Price

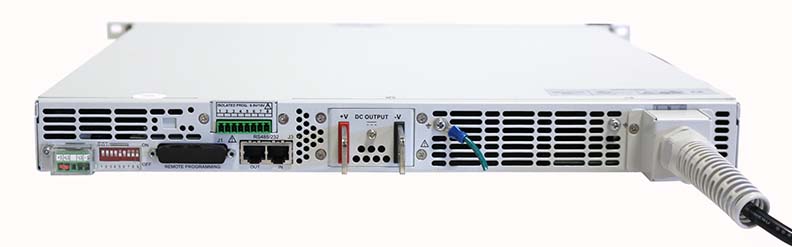

TDK LAMBDA GENESYS DC POWER SUPPLY 12.5 VOLT 120 AMP 1500 WATT

Programmable DC Power Supply

TDK LAMBDA GENESYS DC POWER SUPPLY 12.5 VOLT 120 AMP 1500 WATT
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 12
Manufacturer TDK-Lambda
Model GEN 12.5-120IS510
Maximum Output Voltage 12.50 Volts
Maximum Output Current 120.00 Amps
Maximum Output Power 1.50 kW
Regulation Modes Constant Current     Constant Voltage
Panel Meters Digital
Interface RS 232
Interface 2 RS 485
Bipolar No
Control Type Programmable
External Cooling Air Cooled
Other Information

P/N: 00507203

Has ISOLATED ANALOG PROGRAMMING OPTION IS510, can be removed, REQUEST removal when ordering if you need to use all J1 pins!

When the Isolated Analog Option is installed, do not apply any signals to the
non-isolated VPGM and IPGM (J1-9 and J1-10) pins. All other J1 features
may be used normally. Refer to Section 4.5 for a description of J1 features.

Manual is here: https://product.tdk.com/info/en/products/power/tec_data/ps_system_genesys.html

Extended Description  Details at TDK Lambda Genesys 1.5kW Specifications.pdf
Power Requirements 100-240 V     50/60 Hz     1 Phase
CE Marked YES
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 20.000  in  (50.8 cm)
  Height 1.710  in  (4.3 cm)
