FULL DESCRIPTION of Item 181994

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 181994

Offered 1 Offered at Best Price

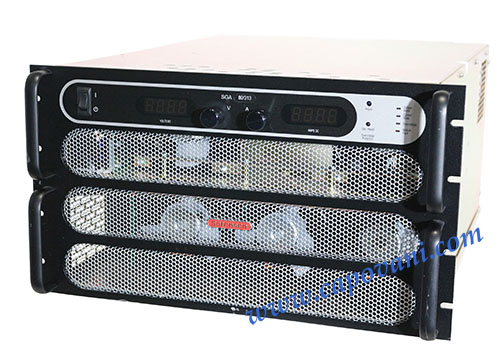

SORENSEN ELGAR DIRECT CURRENT POWER SUPPLY 80 V, 313A

Programmable DC Power Supply SGA 80 313C

SORENSEN ELGAR DIRECT CURRENT POWER SUPPLY 80 V, 313A
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Sorensen
Model SGA 80 313C-1DAA
Maximum Output Voltage 80.00 Volts
Maximum Output Current 313.00 Amps
Maximum Output Power 25.00 kW
Regulation Modes Constant Current     Constant Voltage
Panel Meters Digital
Control Type Programmable
External Cooling Forced Air Cooled
Other Information


Manufacturer web page https://www.powerandtest.com/power/dc-power-supplies/sg-series

Extended Description  Details at SGA_SERIES_OPERATION_MANUAL_M550129-01_rAG.pdf
Power Requirements 200-240 V     125.0 A     50/60 Hz     3 Phase
CE Marked YES
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 29.000  in  (73.7 cm)
  Height 10.500  in  (26.7 cm)
Weight 140  lb  (64 kg)
