FULL DESCRIPTION of Item 178848

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 178848

Offered 3 Offered at $ 3,450.00 (each)

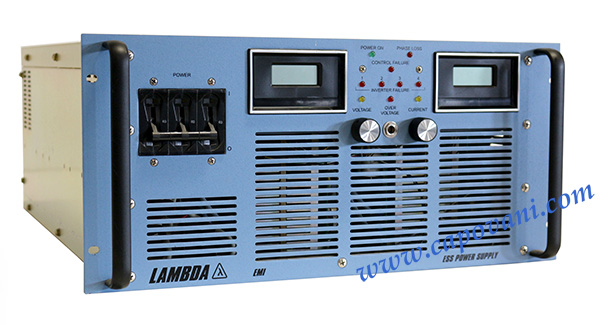

LAMBDA EMI DC POWER SUPPLY 80V, 185A

Direct Current Power Supply

LAMBDA EMI DC POWER SUPPLY 80V, 185A
  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price $ 3,450.00 (each)
Number of Units 3
Manufacturer Lambda
Model ESS 80-185-7-D-0806
Maximum Output Voltage 80.00 Volts
Maximum Output Current 185.00 Amps
Maximum Output Power 14.80 kW
Regulation Modes Constant Current     Constant Voltage
Ripple 75 mV
Panel Meters Digital
Interface Other
Bipolar No
External Cooling Air Cooled
Accessories

25 pin programming interface.

Other Information

P/N: 00481845, C/N: 210000193


Power Requirements: 180-220 VAC, 47-63 Hz, 70 amp, 3 phase, 4 wire
Overvoltage Protection

Extended Description  Details at Instruction Manual 83481004rZ.pdf
Power Requirements 200-230 V     70.0 A(2)     50/60 Hz     3 Phase
CE Marked YES
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 25.000  in  (63.5 cm)
  Height 10.000  in  (25.4 cm)
Weight 112  lb  (51 kg)
