FULL DESCRIPTION of Item 185536

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 185536

Offered5 Offered at $ 1,500.00 (each)

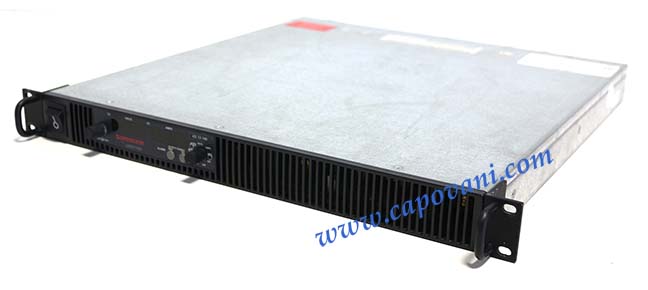

SORENSEN AMETEK PROGRAMMABLE DC POWER SUPPLY 12V, 140A

Programmable DC Power Supply

Sorensen is an Ametek Programmable Power brand.

SORENSEN AMETEK PROGRAMMABLE DC POWER SUPPLY 12V, 140A
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price $ 1,500.00 (each)
Number of Units 5
Manufacturer Sorensen
Model XG 12-140
Maximum Output Voltage 12.00 Volts
Maximum Output Current 140.00 Amps
Maximum Output Power 1.70 kW
Regulation Modes Constant Current     Constant Voltage
Ripple 50mV
Panel Meters Digital
Control Type Programmable
External Cooling Forced Air Cooled
Other Information

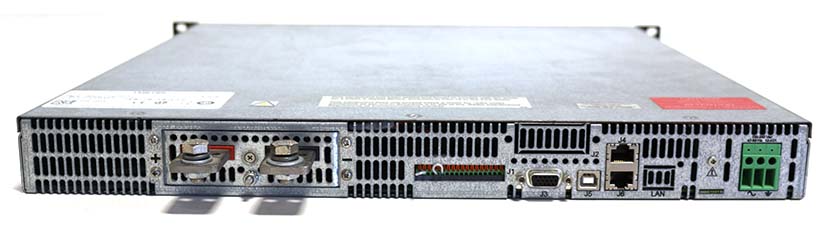

Input interfaces (see details in the manual page 1-10):
RS232, RS485, USB, Analog

Analog isolated (MIA option installed)

Sorensen XG 12-140 DC Power Supply Manual

Sorensen XG 12-140 DC Power Supply Datasheet

Firmware MSTR V2.21

Power Requirements 100-240 V     23.0 A     12.0 A(2)     47-63 Hz     1 Phase
CE Marked YES
Exterior Dimensions
  Width 16.800  in  (42.7 cm)
  Depth 19.000  in  (48.3 cm)
  Height 1.700  in  (4.3 cm)
Weight 22  lb  (10 kg)
