E Beam Evaporator

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Temescal
Model BJD-1800
Description E Beam Evaporator, 7cc Crucible
Vacuum System Cryo Pumped
Load Lock Included No
E Beam Power Supply
  Power Supply Type Triode Tube
  High Voltage Minimum 8 kV
  Number of Guns Controlled 1
  Electron Source Type Six Pocket
  Crucible Size 7.00  cc  (0.43 cu in)

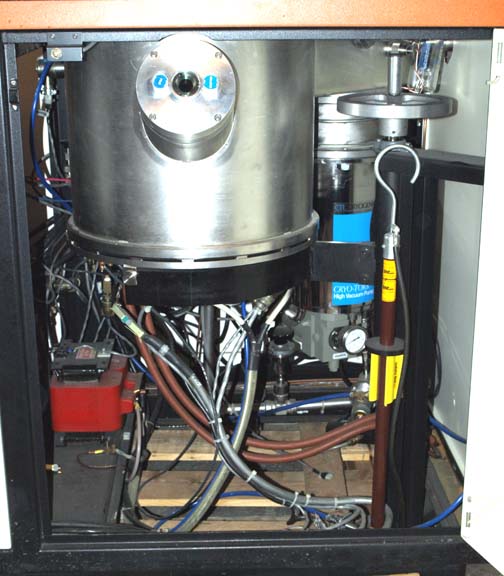

Vacuum System

CTI Cryotorr 8
Suitable Cryo Compressor Included.
30 CFM Mechanical Vacuum Pump. (Backing Pump)

Substrate Heaters Yes
Film Thickness Monitor Yes
Residual Gas Analyzer No

Model TP-8- Lift-Off Substrate Fixture.
Single dome configured for 4" wafers

Other Information

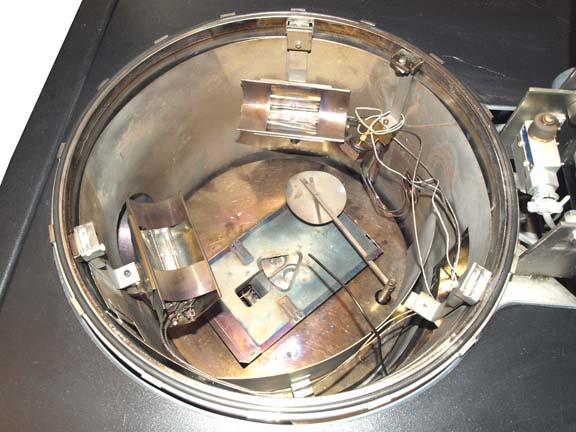

18" in diameter x 9" high stainless steel substrate dome chamber
4" veiw port

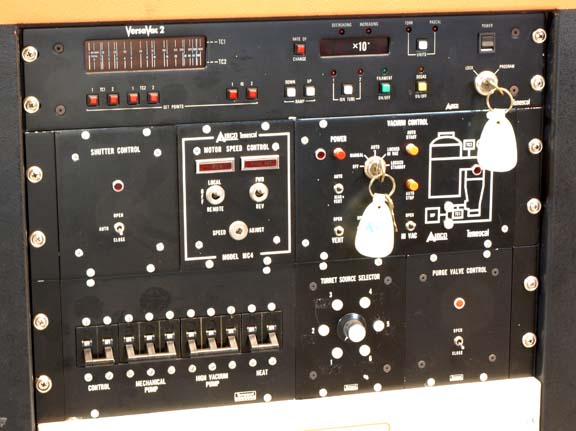

Airco Temescal VersaVac 2
Thermocouple/Ionization gauge

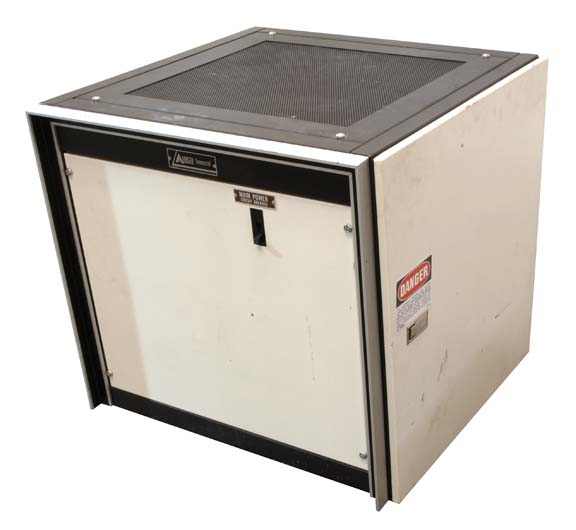

Airco Temescal CV-8A Power Supply
Airco Temescal XYS-8 Sweep Control

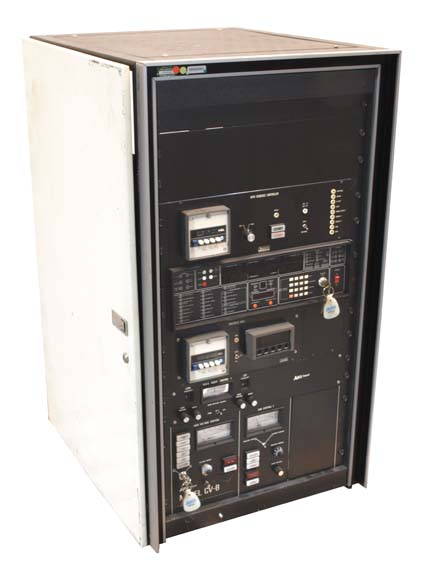

NB: Temescal Auto Sequence Controller shown is not included

Power Requirements 208 V     70.0 A     60 Hz     3¬†Phase
Exterior Dimensions
  Width 60.000  in  (152.4 cm)
  Depth 44.000  in  (111.8 cm)
  Height 56.000  in  (142.2 cm)
