Item ID: 63999

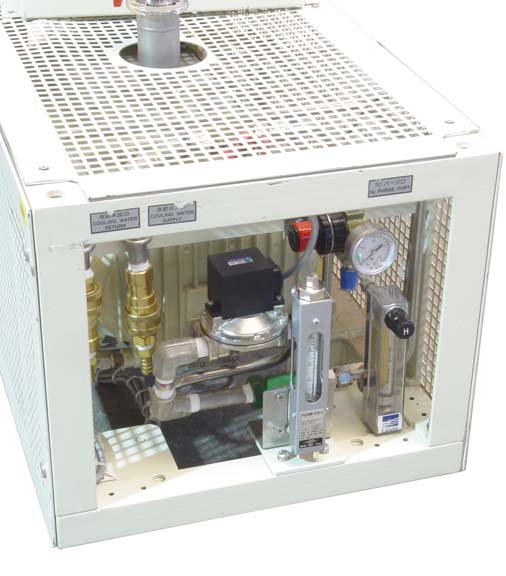

1 Offered at Best Price EBARA DRY VACUUM PUMP 42.0 CFM Dry Vacuum Pump Pumping speed and ultimate pressure are based on 60 Hz operation.       ... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Ebara
Model	40X20
Dry Pump	YES
Pumping Speed	42.0  CFM  (1,186.8 l/m)
Ultimate Pressure	3.00E-2(En)  torr  (4.00E-2 mbar)
Inlet Flange	KF     40.0  mm  (1.575 in)
Exhaust Flange	KF     40.0  mm  (1.575 in)
Duty--Service	Corrosive
Rotational Speed	2,800 RPM
Oil Type	Fomblin TM
Accessories	Motor starters included
Other Information	Water cooled Designed for operation in harsh applications such as: LPCVD, PECVD, CVD and metal etch. Water cooling manifold w/3/8" NPT connections N2 purge system w/pressure regulator and flow meter Pump is not rebuilt
Power Requirements	208 V     20.0 A     60 Hz     3 Phase
Exterior Dimensions
Width	16.000  in  (40.6 cm)
Depth	32.000  in  (81.3 cm)
Height	22.000  in  (55.9 cm)
Weight	420  lb  (191 kg)

OFFERED BY:

(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347



Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).



Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions



Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York   Make OFFERSend an INQUIRY
