in Resistance Evaporators
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 52623

Offered 1 Offered at Best Price

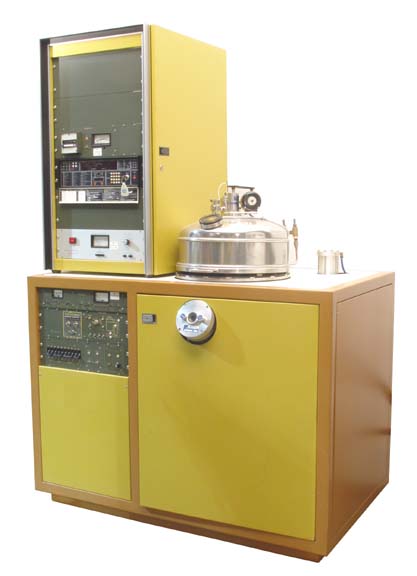

Filament Evaporator

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Airco Temescal
Model BJD-1800
Description Filament Evaporator--Cryo Pumped
Vacuum System Cryo Pumped
Vacuum System

CTI Cryotorr 8
CTI compressor, Water cooled
Helium lines and CTI regeneration controller
Base pressure in the clean chamber will be in 10-8 Torr range after extended pump down time.

Film Thickness Monitor No
Other Information

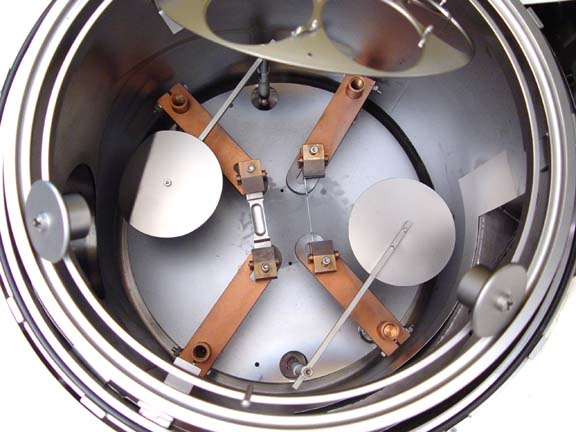

Source Chamber
18" Dia x 18" High, water cooled, 304 stainless steel
Source Tray

  • 18" Dia flat plate with 10 1" dia. feedthrough ports

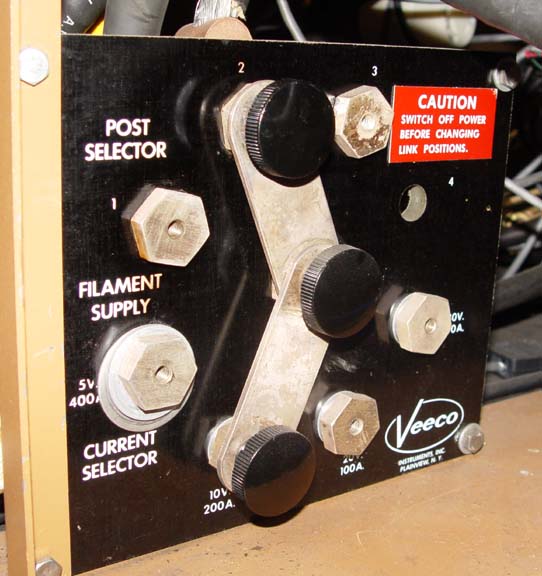

  • 1 EMI EMS 7.5V 600A DC Power Supply

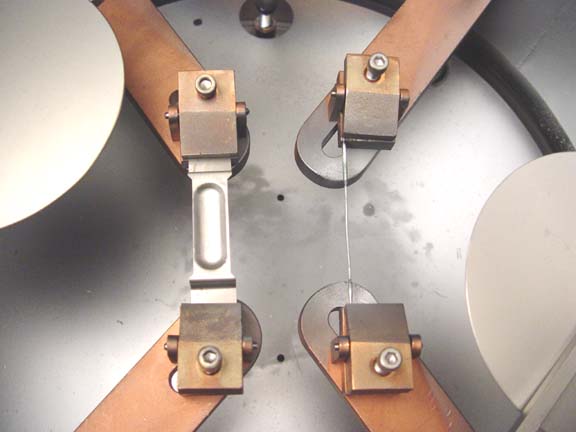

  • Two filament boats -  Sequential operation.

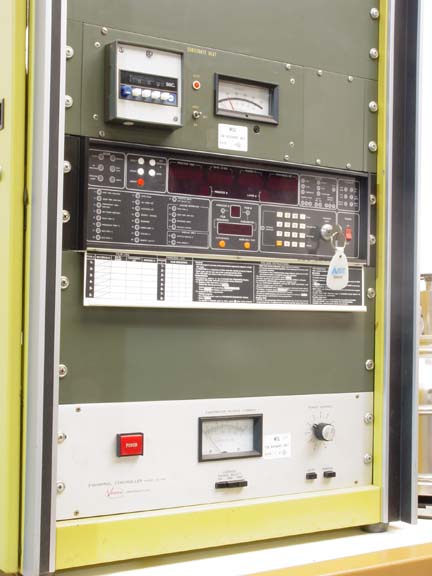

  • Granville Philips 307 Gauge Controller with process control

NB:  Substrate domes not included.   Film thickness monitor shown not included.

Power Requirements 208 V     70.0 A     60 Hz     3¬†Phase
Exterior Dimensions
  Width 56.000  in  (142.2 cm)
  Depth 34.000  in  (86.4 cm)
  Height 89.000  in  (226.1 cm)
Weight 1,322  lb  (600 kg)
