Unit Price |
Unstated |
Number of Units |
1 |

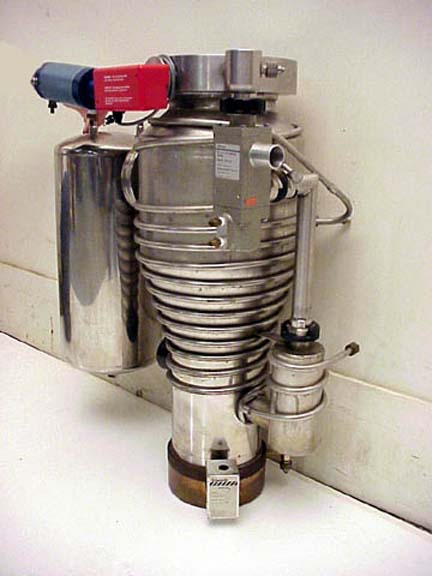

Manufacturer | Edwards |
Model | CR160/700P |
Inlet Flange | ISO-K
160.0 mm (6.299 in)
|
Foreline Flange | KF
25.0 mm (0.984 in)
|
Pumping Speed Nitrogen | 600.0 l/s (1,271.5 CFM) |
Ultimate Pressure |
2.25E-9(En) torr (3.00E-9 mbar) |
Fluid Charge | 0.60 L (0.16 gal, 0.13 Br gal) |
Cooling Water Required | Minimum Flow: 0.50 GPM (1.90 l/m)
Minimum Temperature: 20 ºC (68 ºF, 293.00 ºK)
|
Water Connection | 10mm compression couplings |
Accessories | Typical Applications Include:
|
Other Information | Pumping speed for water vapor: 2000 l/s Liquid nitrogen charge of 7.73 liters, lasting for 18 hours Pneumatic connections: 6mm x 1/4"BSP male Pneumatic actuating pressure: 2.4-6.9 mbar Additional info through this link: and here too |
Power Requirements | 110 V
1 Phase
|
Exterior Dimensions |  |
Width | 25.000 in (63.5 cm) |
Height | 30.000 in (76.2 cm) |
Weight | 60 lb (27 kg) |
