Unit Price |
Unstated |
Number of Units |
1 |

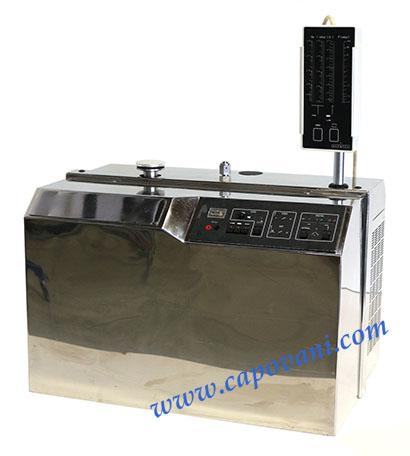

Manufacturer | Alcatel |
Model | ASM 180 TD |
High Vacuum Pump Type | Turbomolecular Pump |
Minimum Detectable Helium Leak Rate |
2.0E-11 atm-cc/sec |
Maximum Detectable Leak Rate |
1.00E-1 atm-cc/sec |
Inlet Port for Auxiliary Pump | No |
Test Port Connection | KF 40 |
Start Up Time | 3 Min. |
Helium Pumping Speed at Inlet | 4.40 l/s (9.32 CFM) |
Remote Control Capabilities | Yes |
Interface | RS 232 |
Audio Alarm with Variable Pitch | Yes |
Detectable Masses |
4 AMU
|
Internal Calibrated Leak | Included |
Built-In Roughing Pump | Included |
Liquid Nitrogen Trap | Not Included |
Accessories | Equipped with gas line "Bullet test option" Turbo pump Polished stainless steel exterior (UCT option)
|
Other Information | Smallest detectable signal at full pumping speed 5E-12 (atm·cc/s) Helium signal reading range 2E-11 to 1E-1(atm·cc/s) |
Power Requirements | 115 V
60 Hz
1 Phase
|
Exterior Dimensions |  |
Width | 23.000 in (58.4 cm) |
Depth | 19.000 in (48.3 cm) |
Height | 20.000 in (50.8 cm) |
Weight | 228 lb (103 kg) |
