Unit Price |
Unstated |
Number of Units |
1 |

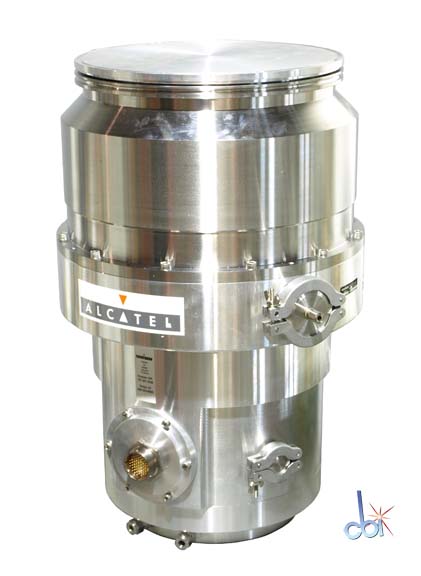

Manufacturer | Alcatel |
Model | ATP 1500M |
Pumping Speed Nitrogen | 1,500.0 l/s (3,178.6 CFM) |
Ultimate Pressure |
2.00E-10(En) torr (2.67E-10 mbar) |
Inlet Flange | ISO-K
250.0 mm (9.843 in)
|
Foreline Flange | KF
40.0 mm (1.575 in)
|
Controller Included | Yes |

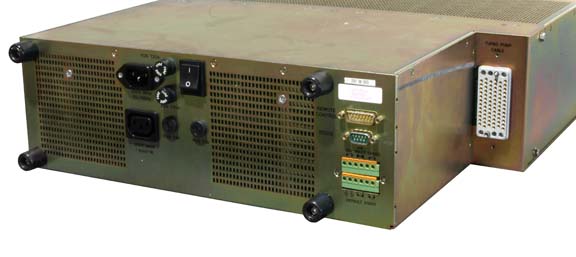

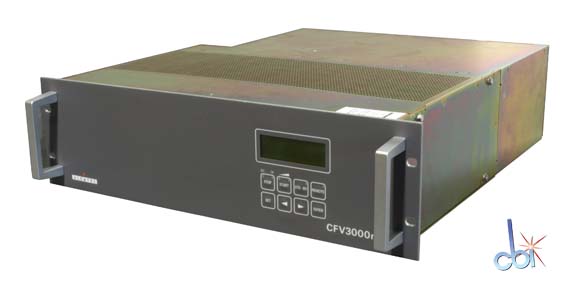

Controller Model/Part Number | CFV 3000M/ 066908 |
Cables Included | Yes |
Duty--Service | Normal |
Inlet Screen Included | Yes |
Bearing Type | Magnetic Levitation |
Installation Orientation | Any |
Rotational Speed | 24,000 RPM |
Startup Time | 12 minutes |
External Cooling | Water Cooled |
Power Requirements | 200-240 V
50/60 Hz
1 Phase
|
CE Marked | YES |
Condition | New-Never Used |
Weight | 298 lb (135 kg) |
