Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 164227

Offered 1 Offered at $ 1,800.00

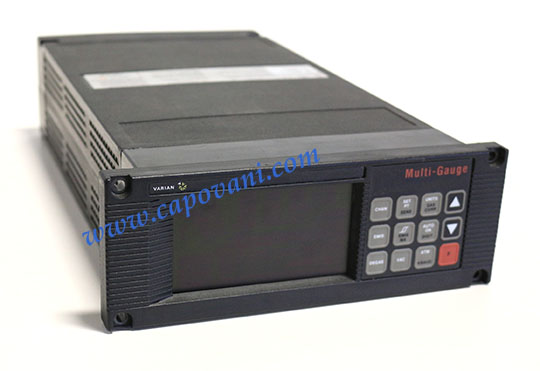

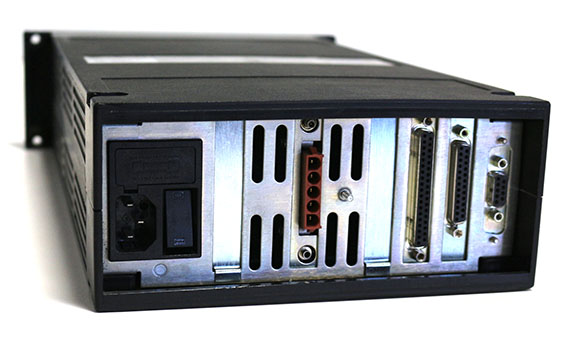

Multi Gauge Controller
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 1,800.00
Number of Units 1
Manufacturer Varian
Model L8350-301
Description Multi Gauge
Gauge Types Controlled 1 Ion, 4 Thermocouple
Cables Included No
Accessories Inquire about gauge cables and gauges


Other Information
Boards installed:

One L6430-301 Thermocouple gauge board
One L6427-301 STD B-A ion gauge board
One L8327-301 Set Point board
One L6439-301 RS232 board

Software A 2.2 (Varian ASCII protocol)

Other versions of A*.* and P *.* software available, request when ordering

Inquire about additional boards or different boards configurations,

controller can be configured for your specific application, see below.
  • Base Unit                                                  $645

Controller must be sold with at least one gauge board, select from the options below:

Option Boards
  • UHV Bayard-Alpert Ion L8321301                  $497
  • STD Bayard-Alpert Ion L6427301                  $481
  • Inverted Magnetron (for IMG-100) L9066301  $420
  • Capacitance Manometer L6491301               $450
  • ConvecTorr L9887301                                  $212
  • Thermocouple L6430301                              $269
  • Set Point female D-connector L8327301         $196
  • Set Point male D-connector L8327301           $196
  • RS232 interface L6439301                             $209
Inquire about the boards not listed

Click here for the manual

Unit is set for 120VAC. Request voltage change to 240VAC if required when ordering

Condition Very Good
Refurbished YES
Power Requirements 120/240 V     4.0 A     50/60 Hz     1 Phase
CE Marked YES
Exterior Dimensions
  Width 9.500  in  (24.1 cm)
  Depth 15.120  in  (38.4 cm)
  Height 3.500  in  (8.9 cm)
