Item ID: 122522

**3 Offered at $ 1,210.00 (each)**

GRANVILLE PHILLIPS ION GAUGE CONTROLLER

Ion Gauge Controller

Granville Phillips Model 360, can replace 307 controller.

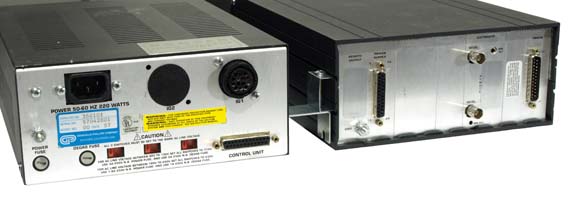

Picture of the controller's back panel is representative

... other image

Location: Scotia, New York

Unit Price	$ 1,210.00 (each)
Number of Units	3
Manufacturer	Granville Phil
Model	360
Description	Single Ion Gauge Controller, can be upgraded to dual for sequential ion gauge operation (add $60)
Gauge Types Controlled	Ion
Cables Included	No
Accessories	Cable between controller and the power supply included. Does NOT have remote I/O connectors on the electrometer and power modules Please inquire about availability gauges and serial communication board. Ion gauge cables see items 6799, 179524, 209733
Other Information	This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules. If you have standard Bayard-Alpert glass gauge, CBI can upload average calibration for that gauge with sensitivity 10/Torr to channel one, two or both. If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it. If you have Stabil-Ion gauge without individual module, CBI can upload average calibration with sensitivity 50/Torr to channel one, two or both. Specify type and sensitivity of your gauges when ordering. Click here for the manual
Power Requirements	115 V 50/60 Hz 1 Phase
Exterior Dimensions
Width	8.000 in (20.3 cm)
Depth	11.000 in (27.9 cm)
Height	3.500 in (8.9 cm)
Weight	12 lb (5 kg)
