FULL DESCRIPTION of Item 105976

in Residual Gas Analyzers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 105976

Offered 1 Offered at Best Price

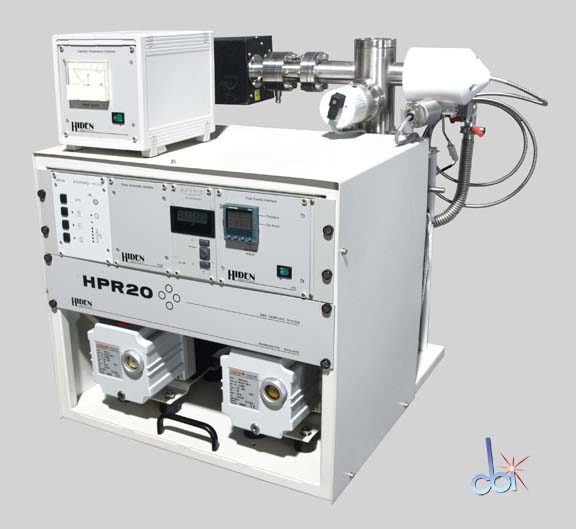

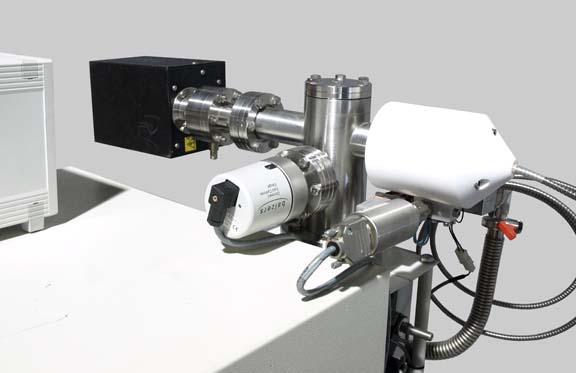

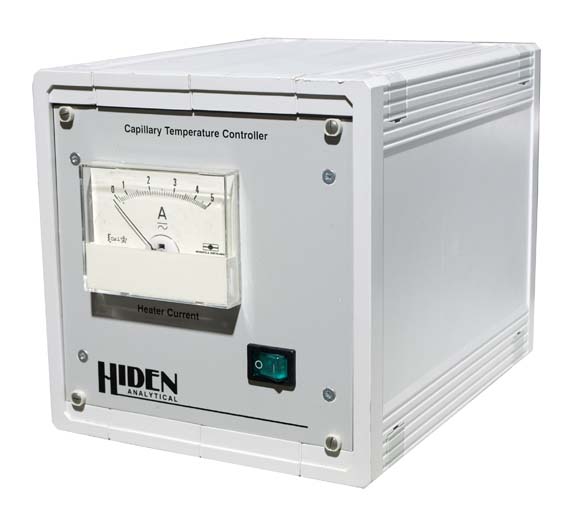

HIDEN ANALYTICAL ATMOSPHERIC/CHAMBER GAS ANALYSIS SYSTEM

Atmospheric/Chamber Gas Analysis System

HIDEN ANALYTICAL ATMOSPHERIC/CHAMBER GAS ANALYSIS SYSTEM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Hiden Analytical
Model HPR-20 QIC
Description Atmospheric/Chamber Gas Analysis System
Mass Range 200 AMU
Accessories
  • Pfeiffer Turbo Pump

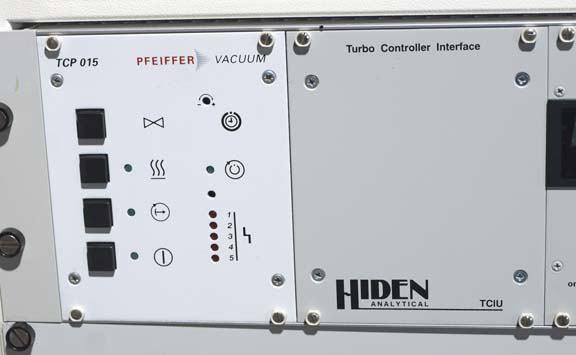

  • Pfeiffer Turbo pump Controller: Model TCP 015

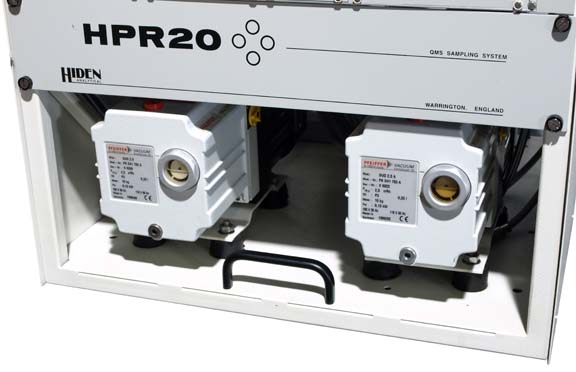

  • (2) Pfeiffer Mechanical Vacuum Pumps: Model DUO 2,5A

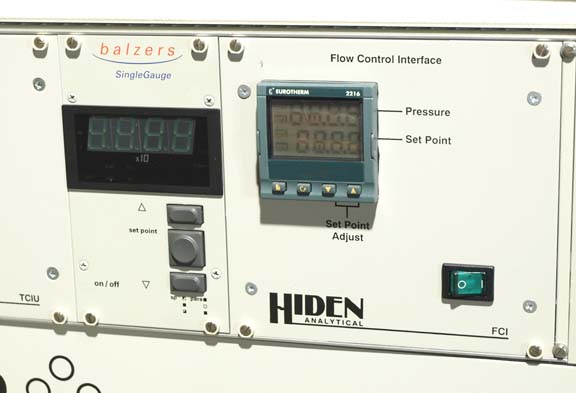

  • Balzers IRK 250 Cold Cathode Gauge
  • MS Windows computer is not included

Other Information

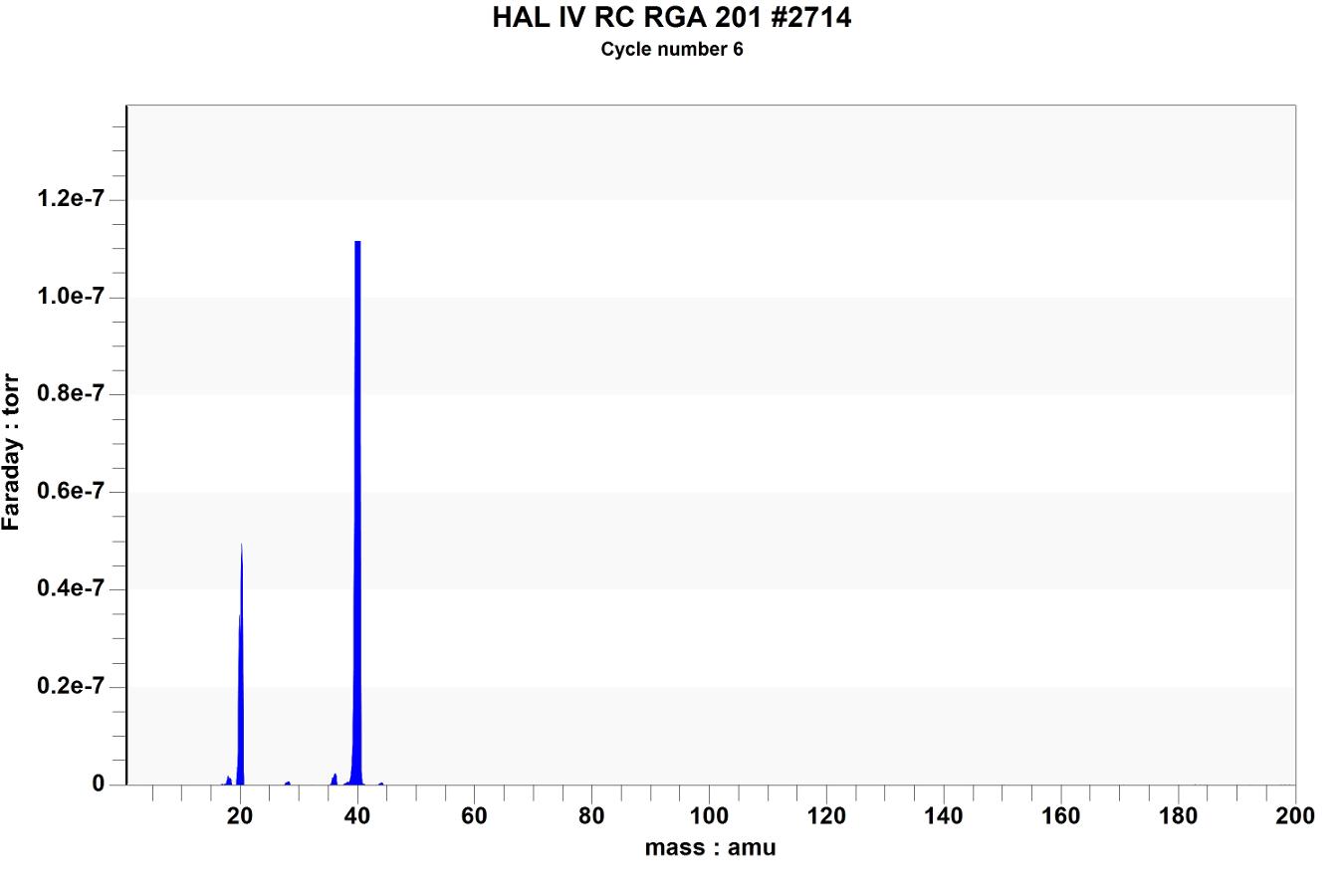

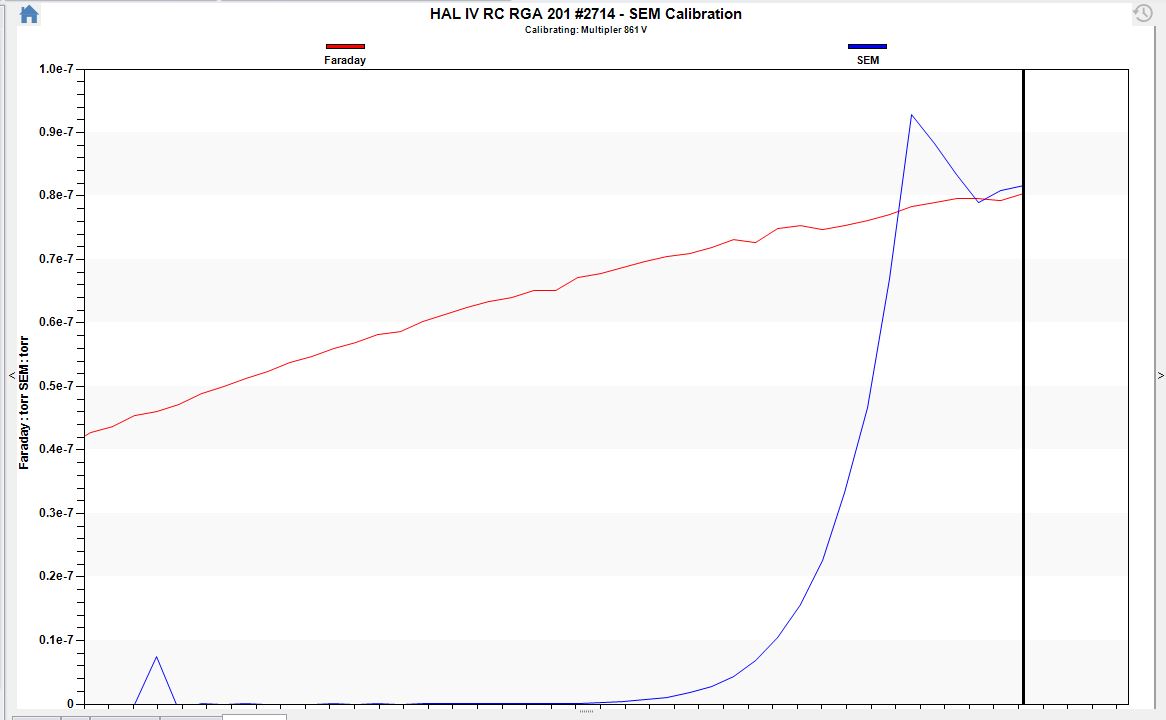

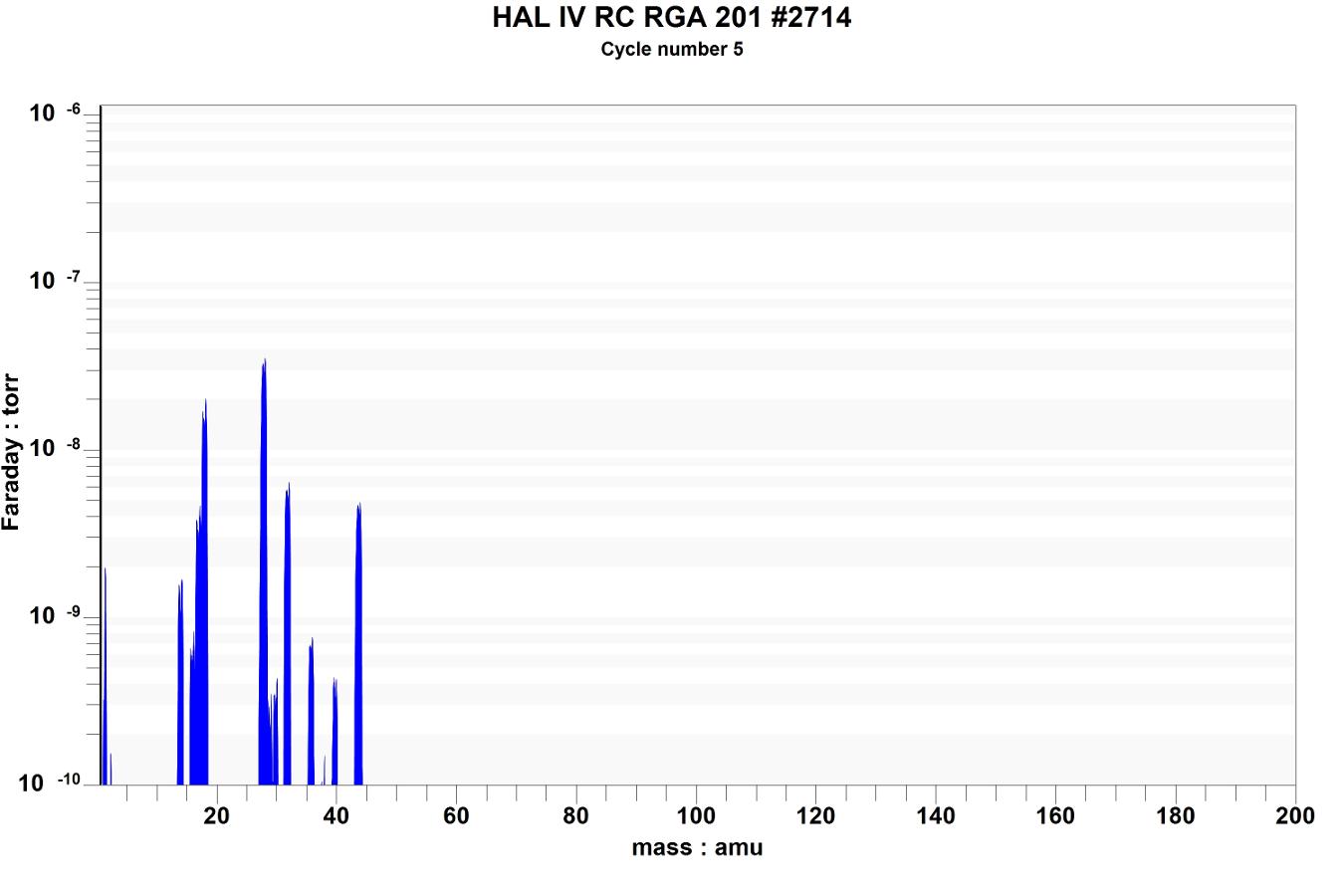

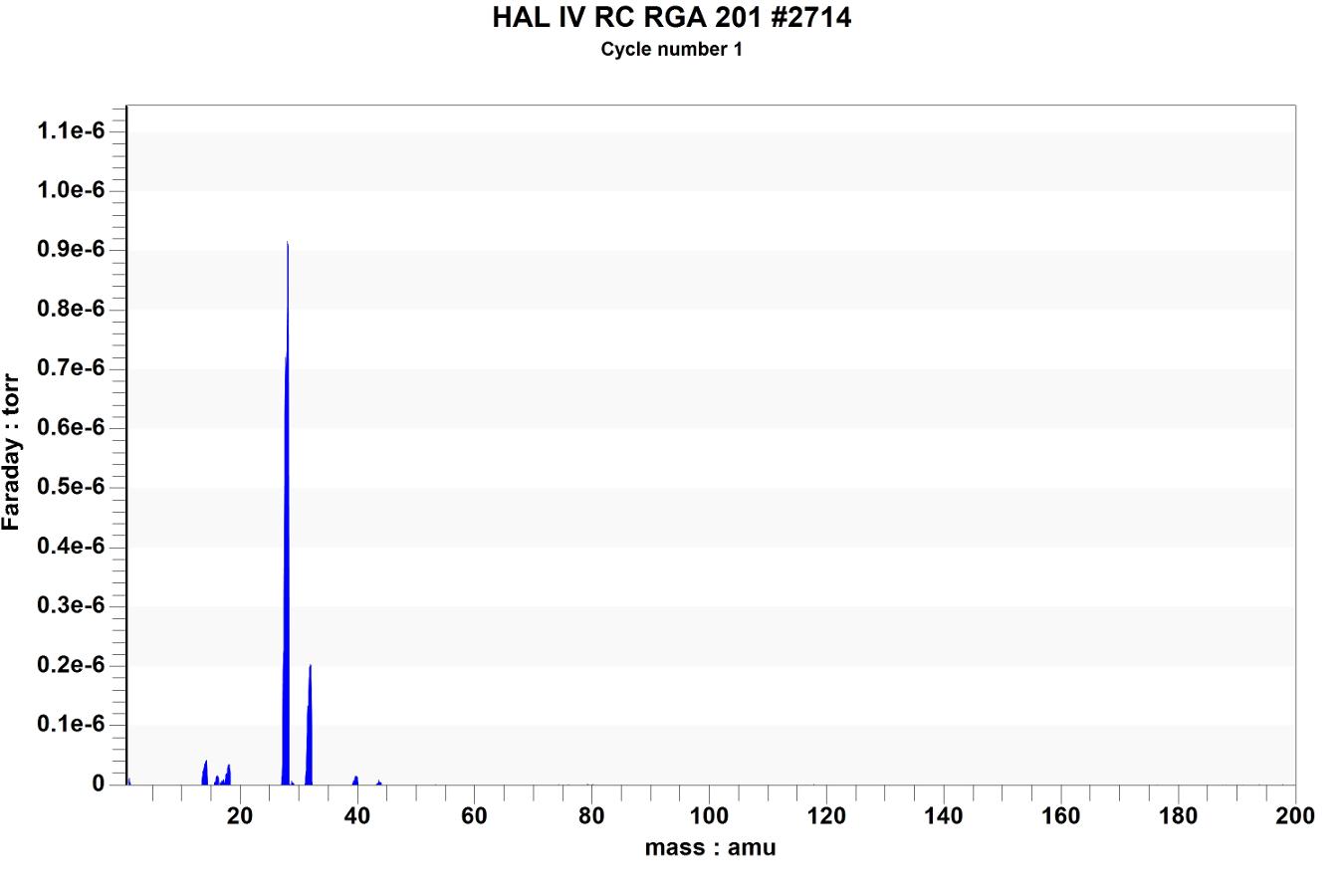

RGA is tested and fully operational, see sample scans (photos 8-11)

Hardware is compatible with the current version of Hiden MASSOFT software as of 12/2023.

Software is not included and must be purchased from Hiden Analytical

Mass range: 200 AMU
QIC direct inlet for Continuous sampling of 1-20 cm3 / min from 10 mbar to 2 bar.
Automated Flow Control Interface for constant ion source pressure.
Soft Ionization for the analysis of complex organics.
Stability (less than ±0.5% height variation over 24 h).



Year of Manufacture 1998
CE Marked YES
Exterior Dimensions
  Width 19.500  in  (49.5 cm)
  Depth 25.000  in  (63.5 cm)
  Height 24.000  in  (61.0 cm)
Weight 174  lb  (79 kg)
