Item ID: 36660

**1 Offered at Best Price**

LEYBOLD E-BEAM EVAPORATOR, 4 POCKET

E-Beam Evaporator with Ion Source

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Leybold
Model	LAB 600 EB
Description	E Beam Evaporator--Ion Assist
Vacuum System	Turbo Pumped
Load Lock Included	No
E Beam Power Supply
High Voltage Minimum	14 kV
Number of Guns Controlled	1
Electron Source Type	Four Pocket

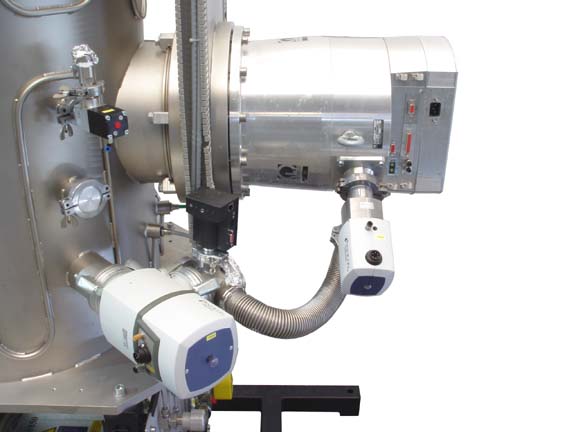

Vacuum System	Leybold Turbovac T1600 pump/controller Edwards QDP40 dry pump Leybold Ruvac WSU251
Gas Inputs	Two
Gas Input Control	Mass Flow Controllers
Film Thickness Monitor	Yes

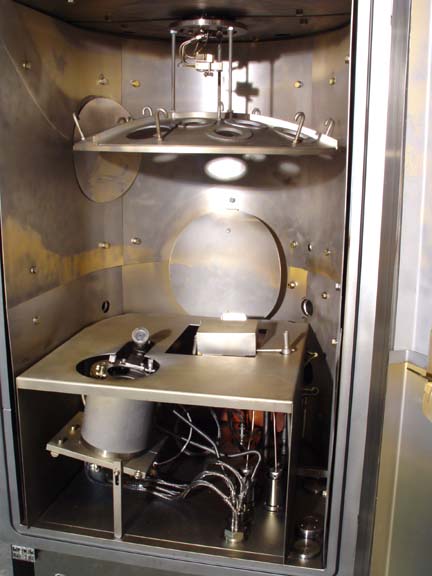

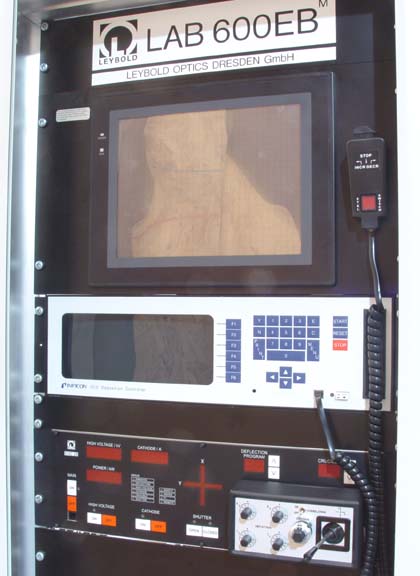

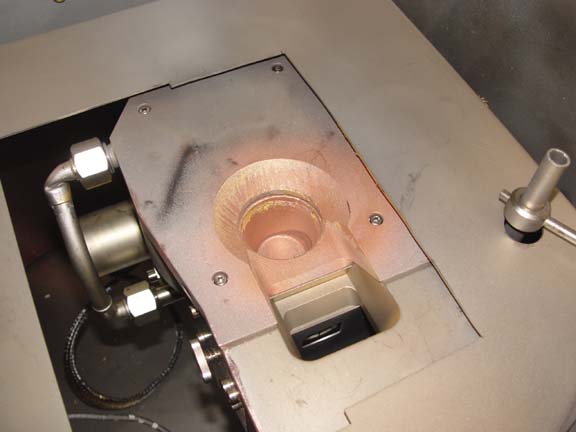

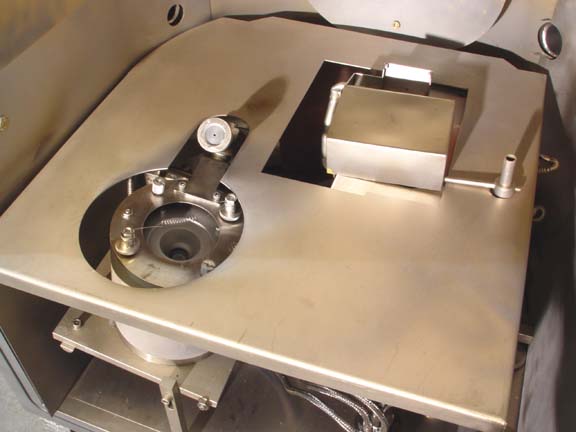

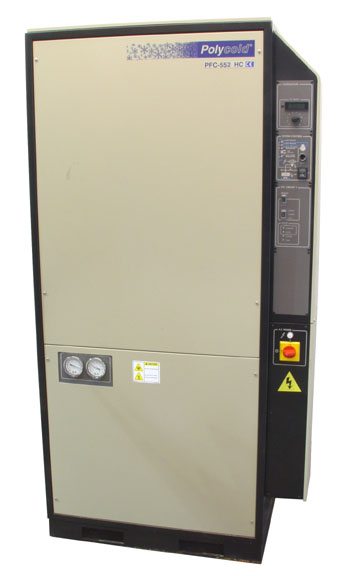

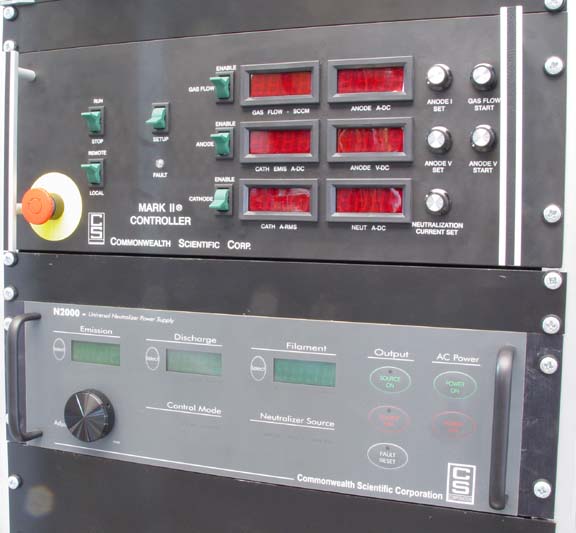

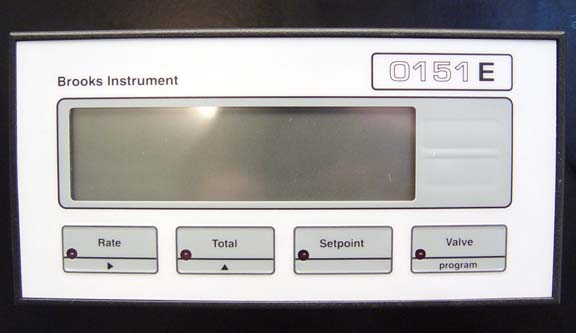

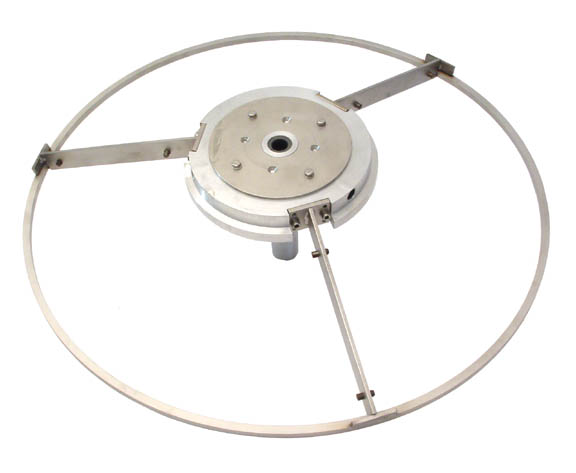

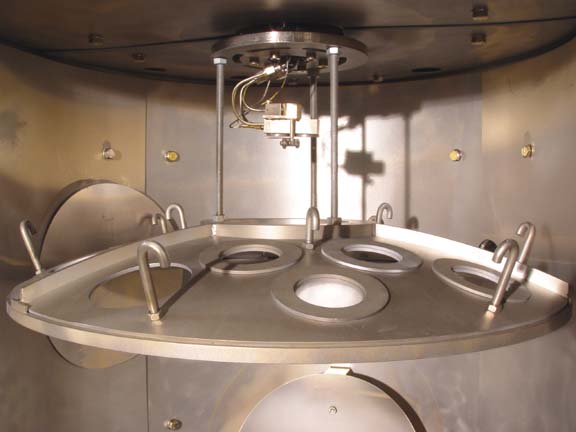

Other Information	Chamber: 23"W x 23"D x 29"H E-gun: ESV14 with 4 pocket crucible Ion source: Commonwealth Mark II Commonwealth N2000 Neutralizer power supply Model 5000 hollow cathode electron source Leybold IC5 deposition controller Lebyold EGC28 electron beam evaporator controller Dual crystal sensor PLC+PC visualization Schnider E-Technik Hi voltage power supply Brooks Instrument 0151E Flow controller GWK recirculating chiller Polycold chiller m/n 552 Planetary for (15)-2" wafers Extra planetary see photo
CE Marked	YES
Year of Manufacture	2001
Condition	Excellent
Exterior Dimensions
Width	37.000 in (94.0 cm)
Depth	57.000 in (144.8 cm)
Height	83.000 in (210.8 cm)
Weight	1,480 lb (671 kg)
