Item ID: 244096

**1 Offered at $ 110,000.00**

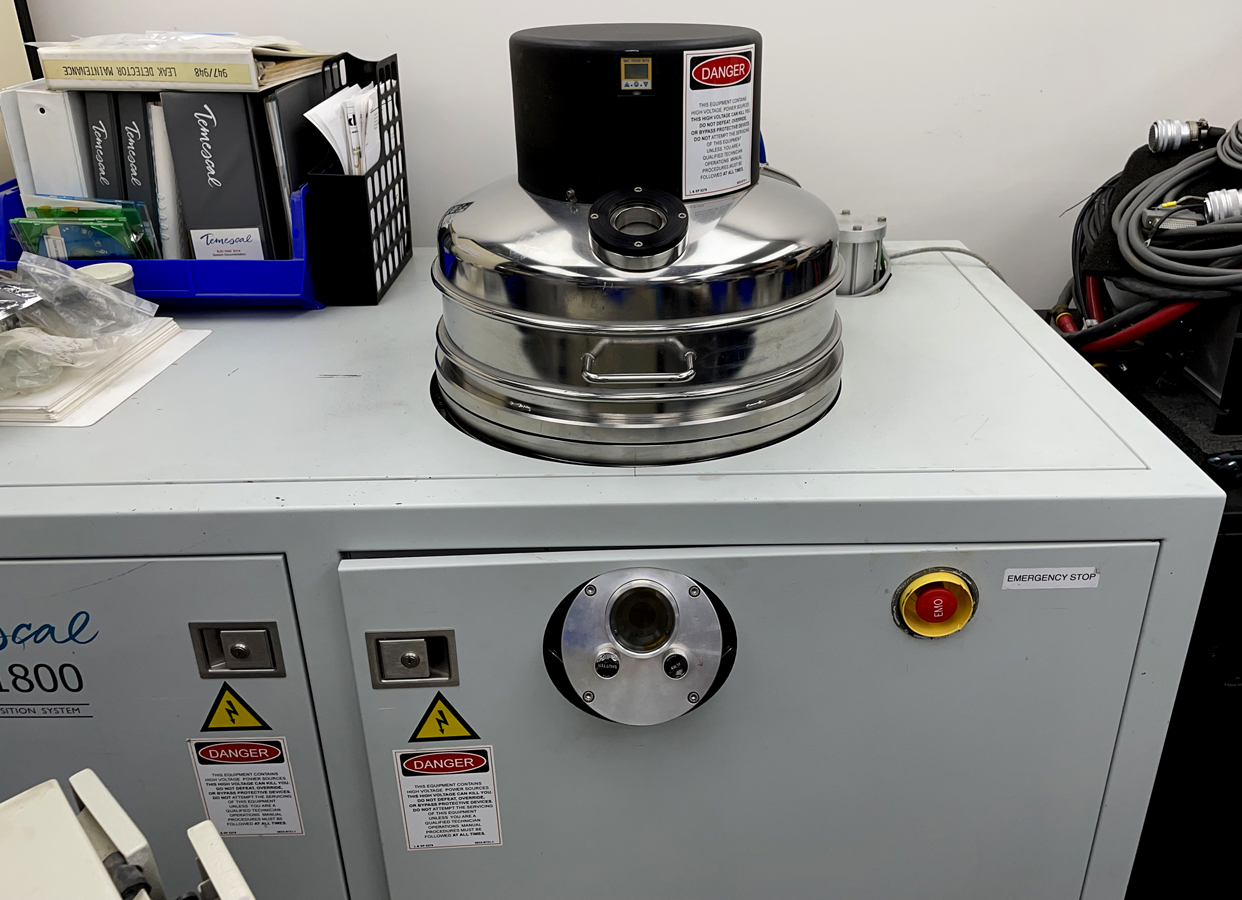

Temescal BJD-1800 Electron Beam Evaporator

TEMESCAL BJD-1800 Electron-Beam Evaporator

PLC/PC Based Control System

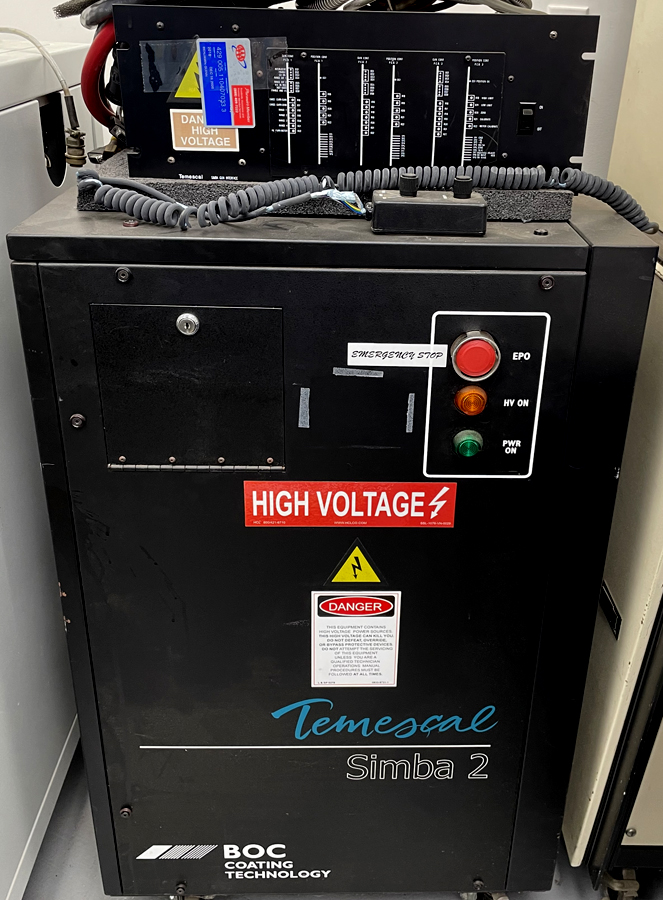

TEMESCAL Simba 2 E-Beam Power Supply

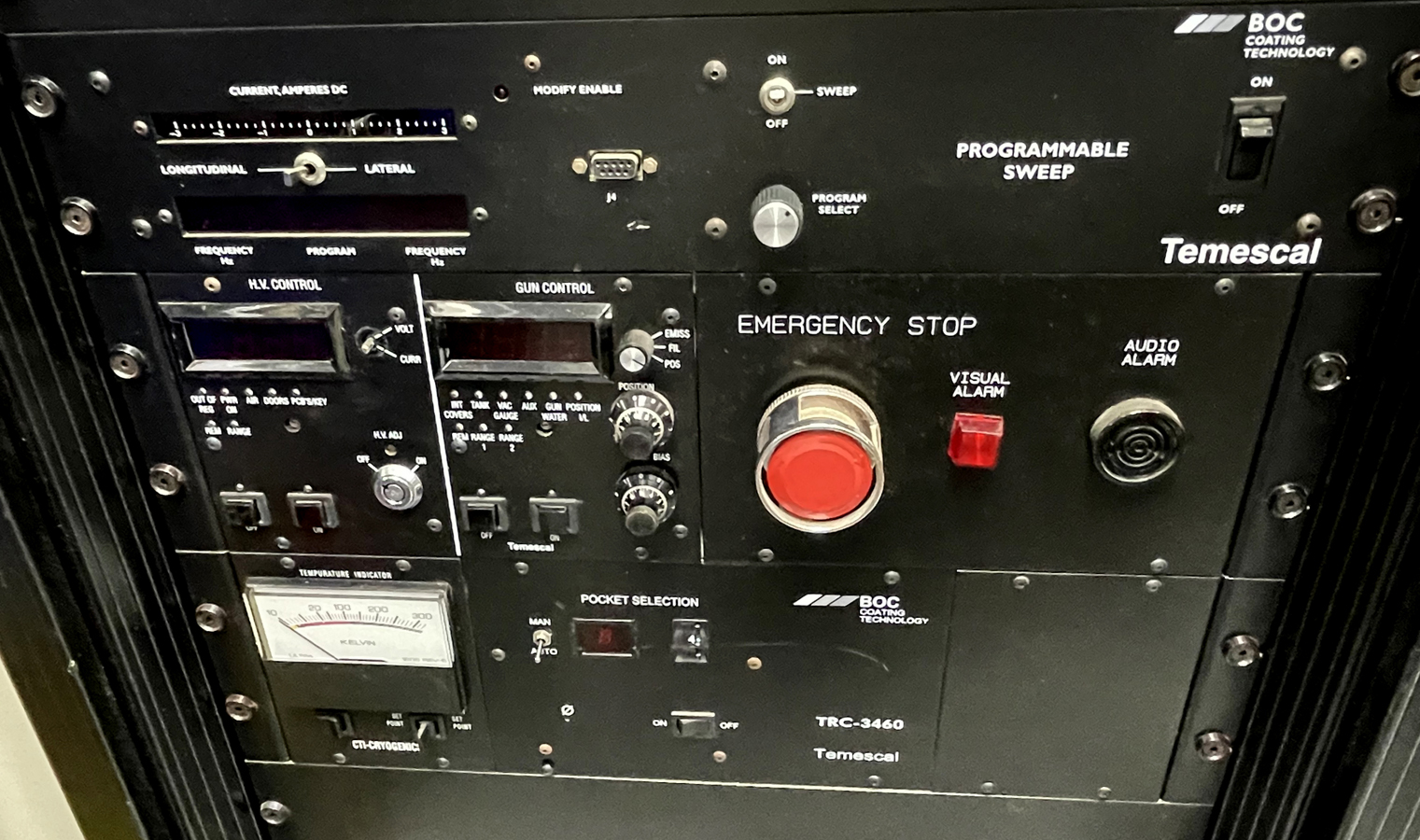

- TEMESCAL Programmable Sweep Controller

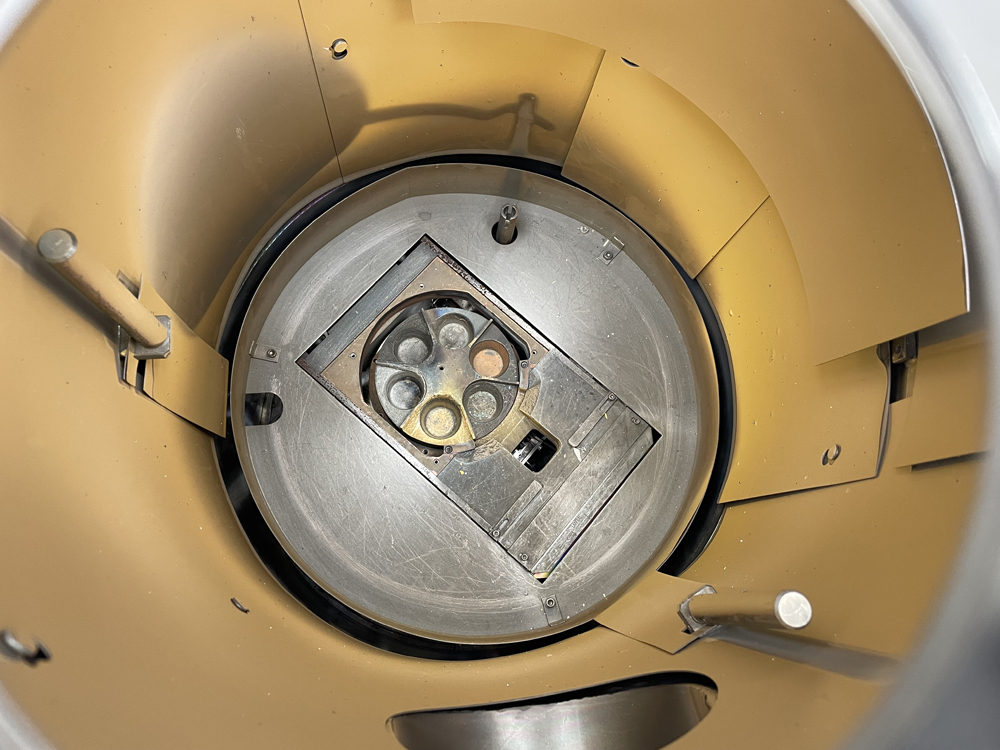

TEMESCAL Six Pocket E-Beam Source with 15cc Crucible Pockets
TEMESCAL TRC-3460 Turret Rotation Controller

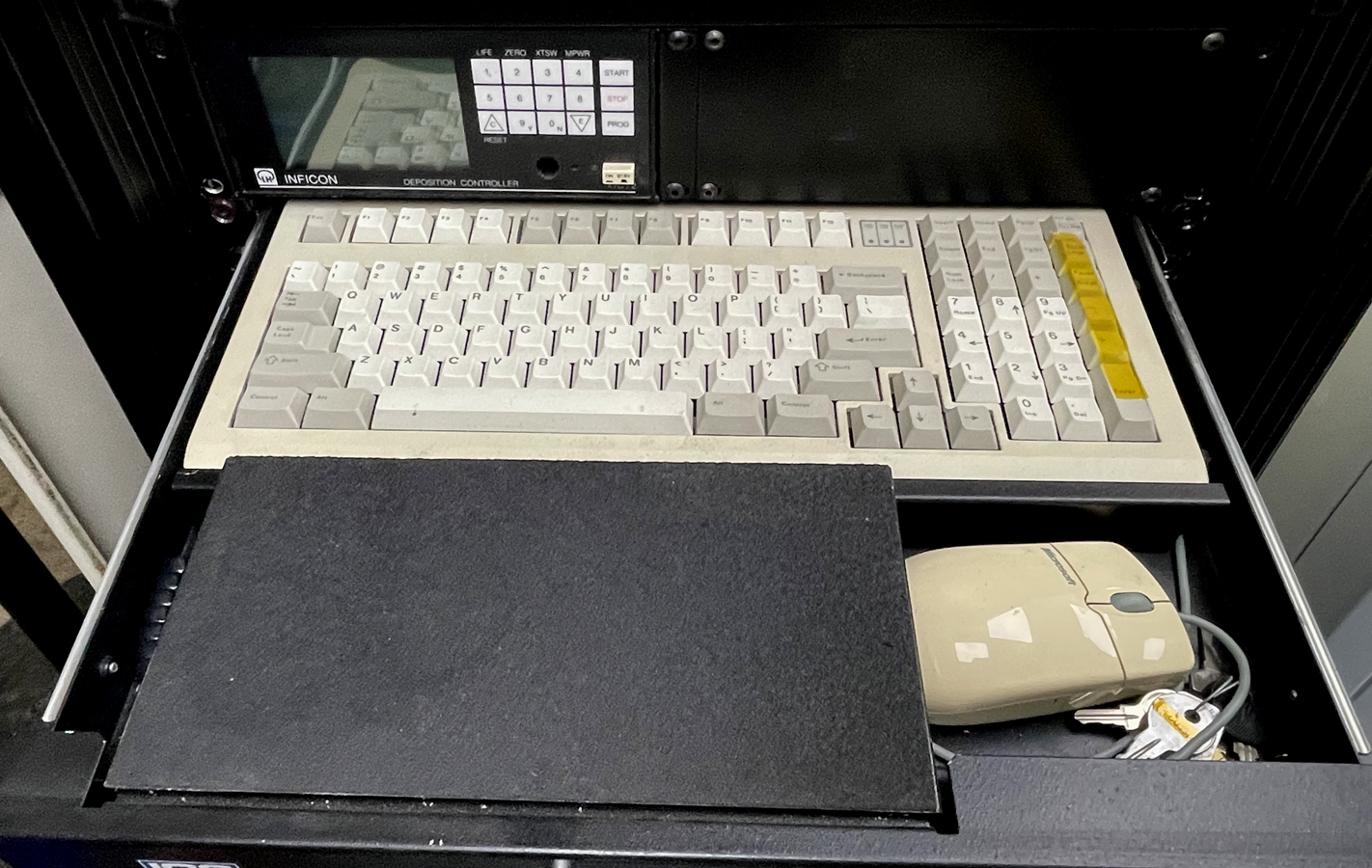

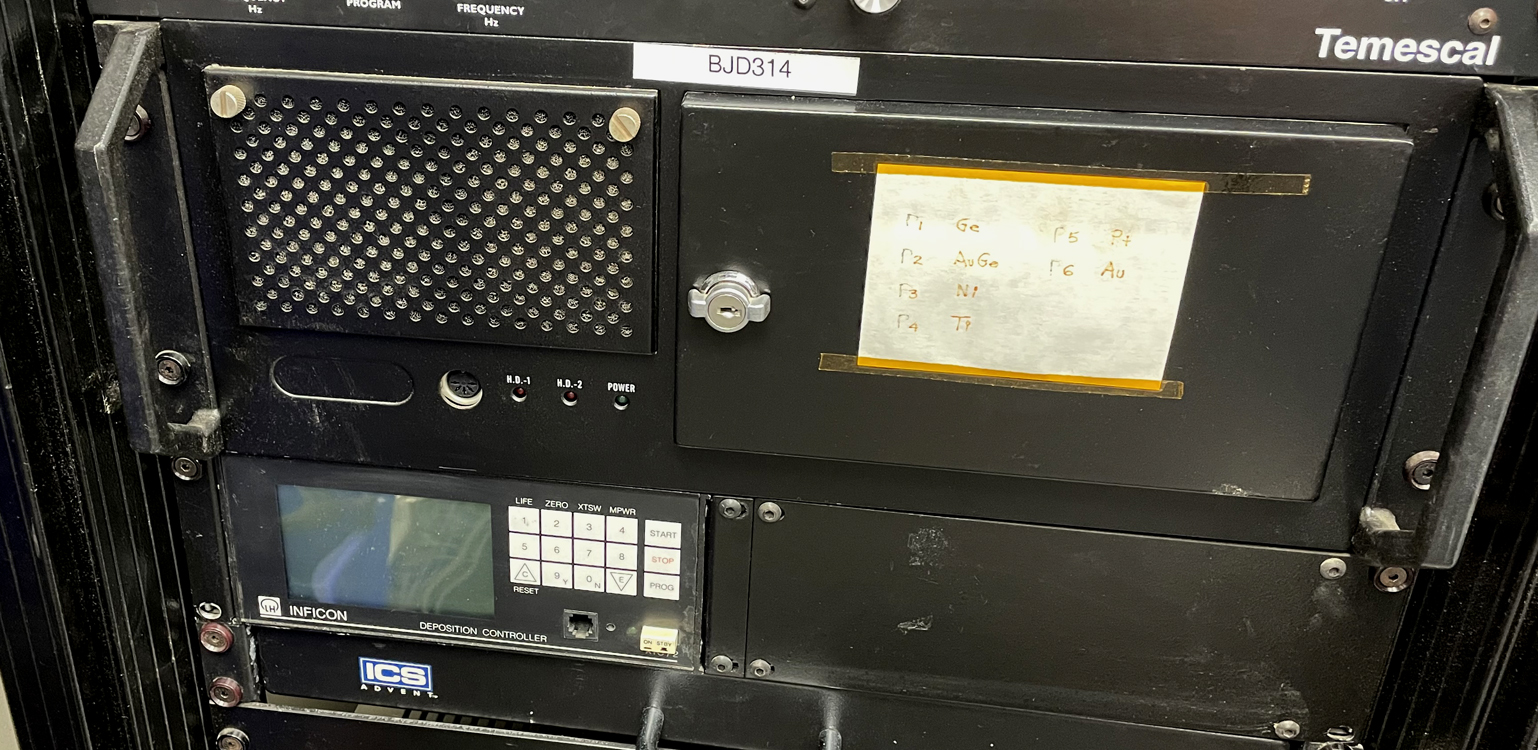

INFICON XTC-2 Deposition Controller
GRANVILLE-PHILLIPS Mini-Convectron Gauges
GRANVILLE-PHILLIPS Mini-Ion Gauges
CTI CryoTorr 8 Cryogenic Vacuum Pump
CTI Water Cooled Compressor

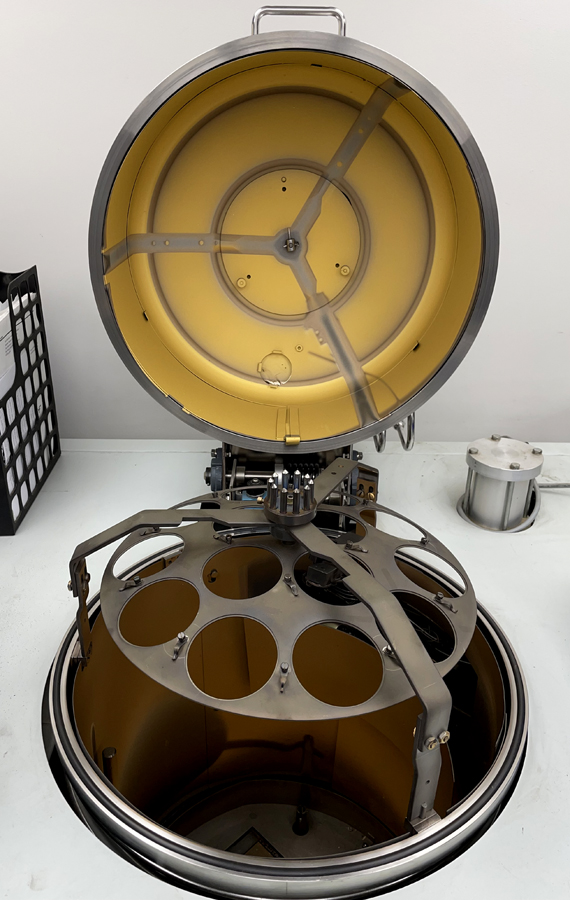

18” (i.d.) Stainless Steel Chamber with Motorized Lift
- Hinged Chamber Lid
- Factory Shielding Set Included
TEMESCAL Lift-Off Fixturing for 3” & 4” Wafers – 2ea Sets Each
EDWARDS QDP40 Dry Vacuum Pump
Complete System Refurbishment Included
Delivery: 6-8 Weeks
………….…………………………………………………………….….$110,000.00

Location: Mountain View, California

Unit Price	$ 110,000.00
Number of Units	1
Manufacturer	Temescal
Model	BJD-1800
Description	Temescal BJD-1800 Electron Beam Evaporator
Vacuum System	Cryo Pumped
Load Lock Included	No
E Beam Power Supply
Power Supply Type	Triode Tube
Number of Guns Controlled	1
Lateral/Longitudinal Beam Sweep	Temescal Programmable Sweep Control
Electron Source Type	Six Pocket
Crucible Size	15.00 cc (0.92 cu in)
Substrate Heaters	No
Film Thickness Monitor	Yes
Residual Gas Analyzer	No
Refurbished	YES
Condition	Like New
