FULL DESCRIPTION of Item 179528

in Multiple Gauge Controllers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 179528

Offered1 Offered at $ 1,999.00

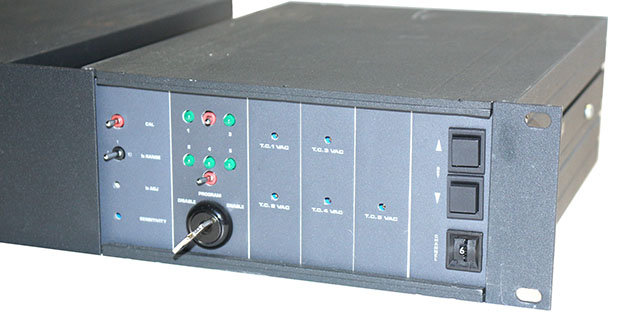

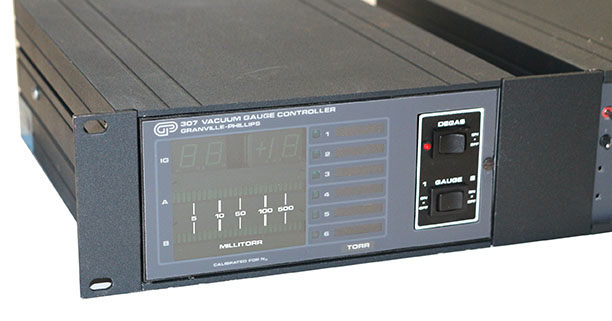

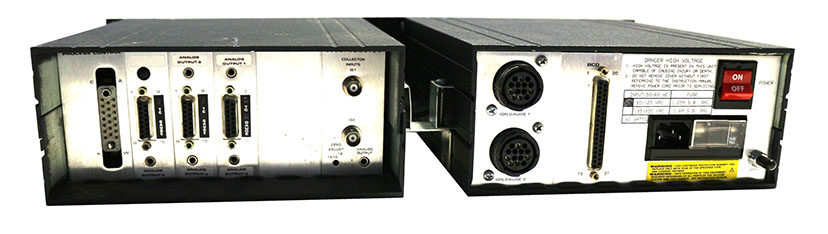

GRANVILLE PHILLIPS DUAL ION / FIVE THERMOCOUPLE GAUGE CONTROLLER

Dual Ion/ Five Thermocouple Gauge Controller

Granville Phillips 307109
GRANVILLE PHILLIPS DUAL ION / FIVE THERMOCOUPLE GAUGE CONTROLLER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 1,999.00
Number of Units 1
Manufacturer Granville Phil
Model 307109
Description Dual Ion/Five Thermocouple Gauge Controller
Gauge Types Controlled Ion; Thermocouple
Cables Included No
Accessories
Cable between controller and the power supply included.

Gauges and gauge cables are not included, inquire, please.

Ion gauge cables see items 6799 or 179524

TC gauge compatible types: G-P 270006, Comptech TVT-6000, or Teledyne-Hastings DV-6M, DV-6R, DV-36, DV-20.

Other Information
  • Sequential Ion Gauge readout 1E-1 to 1E-9 Torr
  • Thermocouple bar graph readout 1E-3 to 1 Torr
  • 6 relay process control
  • BCD interface for gauge pressure, status and control
  • Analog pressure output

Dimensions and weight:

Control Unit
  • Width 241 mm 9.5 in
  • Height 89 mm (3.5 in.)
  • Depth 356 mm (14 in.) includes 76 mm (3 in.) for connectors and cables
  • Weight 3 kg (6.5 lb.)

Power Unit

  • Width 203 mm (8 in.)
  • Height 89 mm (3.5 in.)
  • Depth 330 mm (13 in.) includes 89 mm (3.5 in.) for connectors and cables
  • Weight 4 kg (8.5 lb.)
Power Requirements 115/ 230 V     1.0 A     0.5 A(2)     50/60 Hz     1 Phase
