FULL DESCRIPTION of Item 126590

in Residual Gas Analyzers
Deal directly with Owner:  Catalyst Equipment Corporation of Plano, TX

Item ID: 126590

Offered1 Offered at Best Price


MK PAS-4U1HG

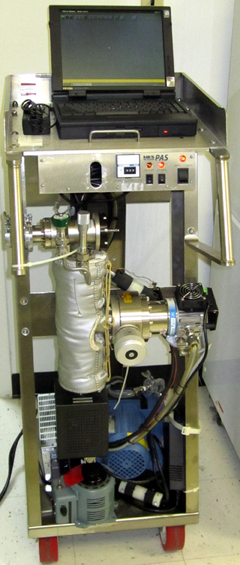

Portable Analytical System
MK PAS-4U1HG
  Click to see additional image(s)... other images

Location: Plano, TX
Unit Price Unstated
Number of Units 1
Manufacturer MKS Instruments
Model PAS
Description Residual Gas Analyzer
Other Information
  • Serial Number 98035001W
  • Residual Gas Analysis & He Leak Detection
  • Maximum Mass 100 amu
  • Sem Supply 1.5KV

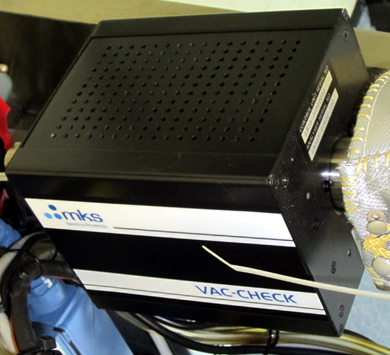

  • MKS/Spectravac Vac\Check Residual Gas Analyzer
  • Control Unit Serial Number LM78 00801010
  • Analyzer Serial Number LM50501602-1D2
  • RF Board ID LM78-100 RGA1
  • Analog ID LM78-105 RGA1

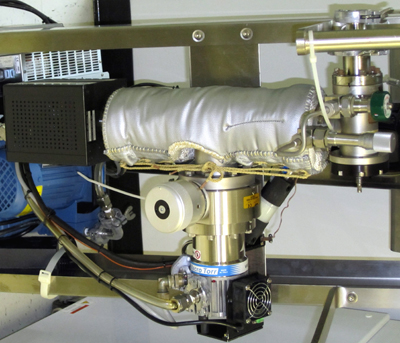

  • Blanket Heater with Omega CN350 Temperature Controller
  • Laptop Computer with Windows OS; System Software Revisions:

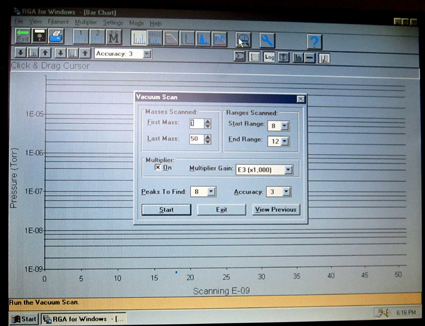

  • RGA for Windows Software V2.45-0-0-100D
  • Satellite Download Software Version DL-V2.45
  • Instrument Software ST V1.22-0-0
  • Spectra VBX Software VX V2.32
  • Com Library Software Version M1-V1.02
  • CRC.CALC.DLL Version L1-V1.00

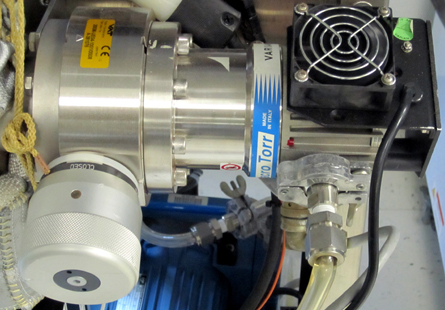

  • Varian TurboV 70LP MacroTorr Turbmolecular Vacuum Pump
  • Varian TV70 Turbo Pump Controller; Model # 9699507
  • Vacuubrand MZ 2I/211 Diaphragm Vacuum Pump
  • VAT Series 20 “Vatterfly” Valve; Part #20036-UE04-1001/0008
  • NorCal 940413-1 Manual Right Angle Poppet Valve
  • Nupro 6LV-DAVR4-P-GP ¼ Turn Diaphragm Valve
  • Nupro SS-4BMG-VCR Manual Metering Valve
  • Variac Used as AC Line Filter
  • Facilities: 120 VAC, 50/60Hz; 20A
