FULL DESCRIPTION of Item 186387

in Rotary Vane Pumps
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 186387

Offered23 Offered at Best Price

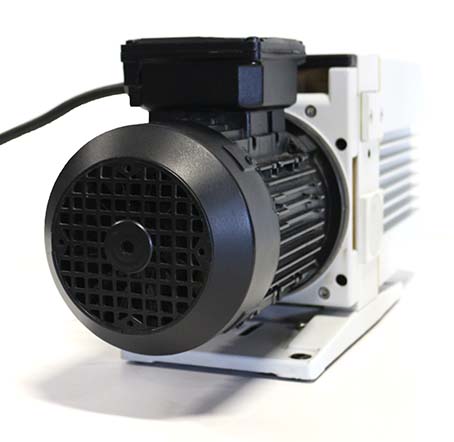

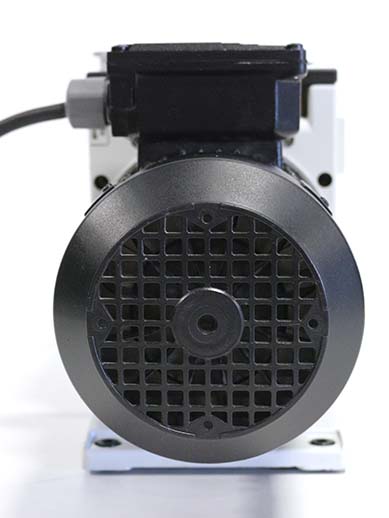

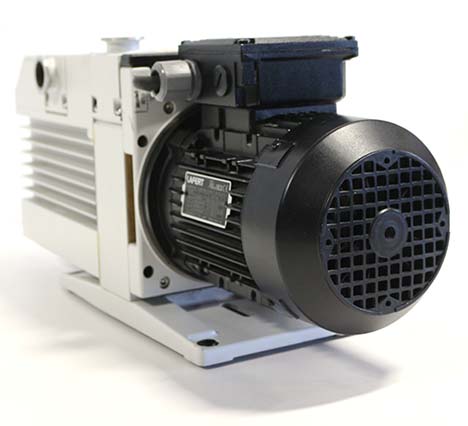

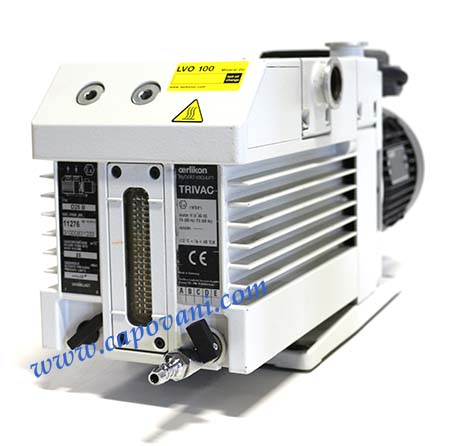

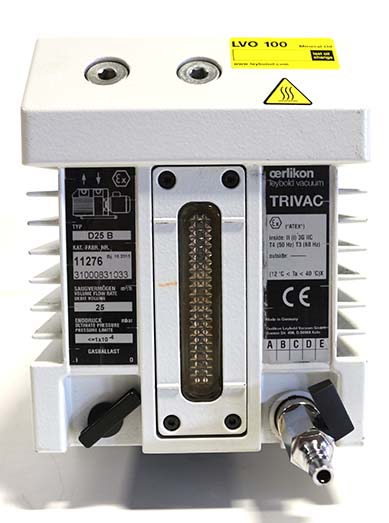

OERLIKON LEYBOLD ROTARY VANE PUMP 20.9 CFM

Two Stage Rotary Vane Vacuum Pump

Once sold, all mechanical vacuum pumps will be rebuilt to factory specifications, unless stated otherwise.
All rebuilt pumps are sold with a one year warranty on parts and labor.
Pumps can be ordered Fomblin® or standard hydrocarbon oil prepped.

Pumping speed and ultimate pressure are based on 60 Hz operation.





OERLIKON LEYBOLD ROTARY VANE PUMP 20.9 CFM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 23
Manufacturer Oerlikon Leybold
Model D25B
Pumping Speed 20.9  CFM  (590.6 l/m)
Ultimate Pressure  7.50E-5(En)  torr  (10.00E-5 mbar)
Inlet Flange KF     25.0  mm  (0.984 in)
Exhaust Flange KF     25.0  mm  (0.984 in)
Refurbished YES
Duty--Service Normal
Two-Stage YES
Gas Ballast Yes
Direct Drive Yes
Motor Horsepower 1.5  HP
Rotational Speed 1,725 RPM
Oil Type Hydrocarbon
Oil Capacity      Maximum: 0.47  L  (0.50 qt, 0.10 Br gal)
Other Information Part No.: 11276

Power input:  200/380-400V, 50Hz -- 200-240/380-400V, 50Hz
Power input:  208-240/416-480 V, 60Hz -- 200-240/380-480, 60Hz
Extended Description  Details at Oerlikon Leybold D25B_11276.pdf
Power Requirements 230/460 V     3.6 A     1.8 A(2)     50/60 Hz     3 Phase
Exterior Dimensions
  Width 9.750  in  (24.8 cm)
  Depth 25.000  in  (63.5 cm)
  Height 11.750  in  (29.8 cm)
Weight 98  lb  (44 kg)

OFFERED BY: (click name below to visit its website directly)

Capovani Brothers Inc.
Scotia , New York
1.518.346.8347
